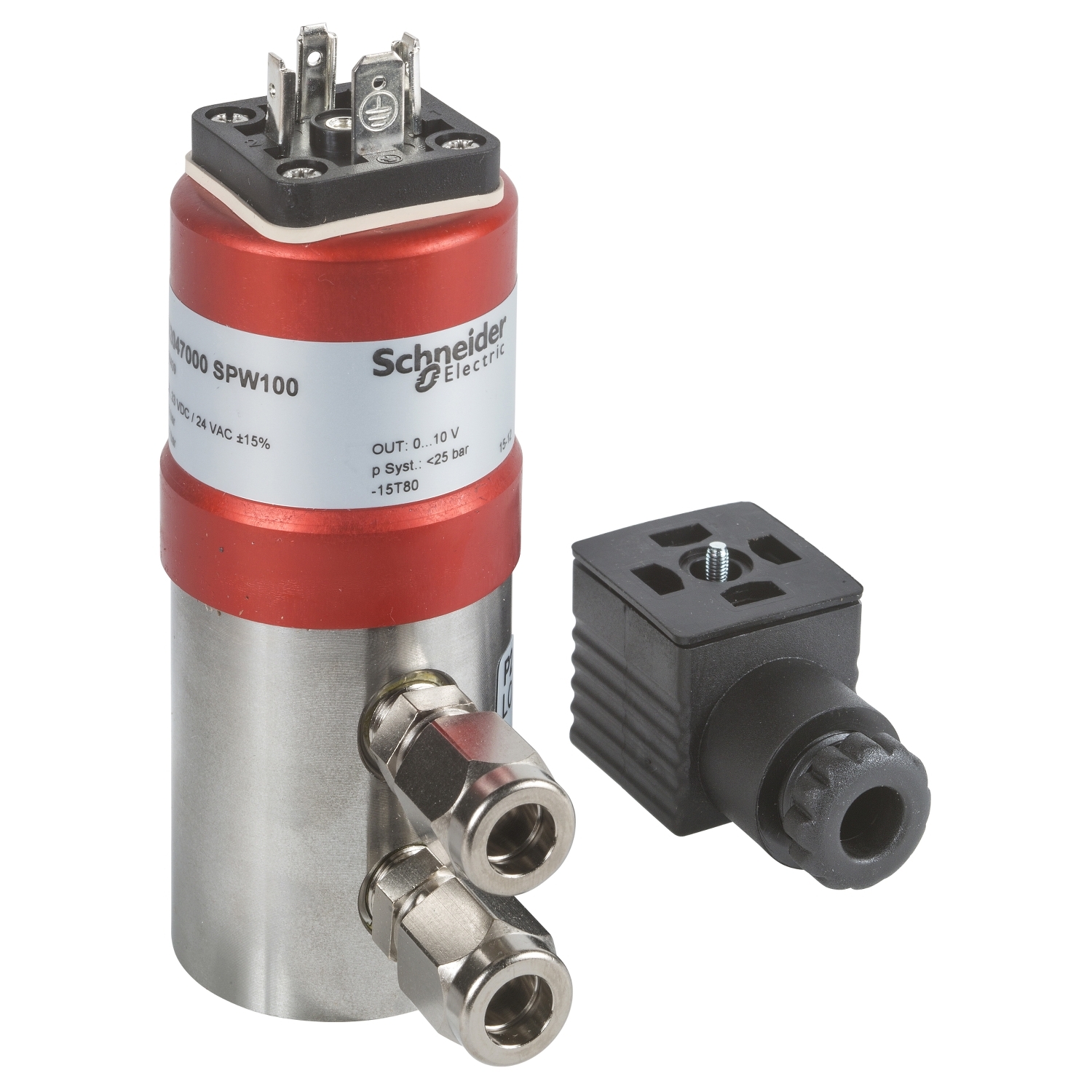

SPW differential wet pressure sensors utilise well proven ceramic technology. They have a low sensitivity to change in temperature and a high resistance to extreme temperatures.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| IP degree of protection | IP65 |
| Device application | chiller differential pressure monitoring, pump and compressor differential pressure |
| Depth | 40 mm |
| Fitting type | female |
| Width | 65 mm |
| Sensor type | ceramic Al2O3 pressure |
| Burst pressure | 174 psig (12 bar) |
| Pressure measurement range | 0...58 psi (0...4 bar) |
| Wiring technique | 3-wire |
| Net weight | 430 g |
| Controlled fluid | water |
| Location | plant room |
| Product or component type | pressure transmitter sensor |
| Type of measurement | differential pressure |
| Targeted region | Asia Pacific., Europe |
| Fitting size | G 1/8" |
| Mounting support | pipe |
| Range of product | SPW100 |
| Analogue output type | 0...10 V DC |
| Calibration certificate | none |
| Ambient air temperature for operation | -15-85 °C |
| Height | 130 mm |
| Pressure measurement accuracy | +/- 1 % FS |
| [Us] rated supply voltage | 18...33 V DC, 22...26 V AC, 24 V AC |
| Operating current | 5 mA |
| Product certifications | CE |
| Complementary | |
| Mounting mode | pipe |
| Sensor model | SPW108 |
