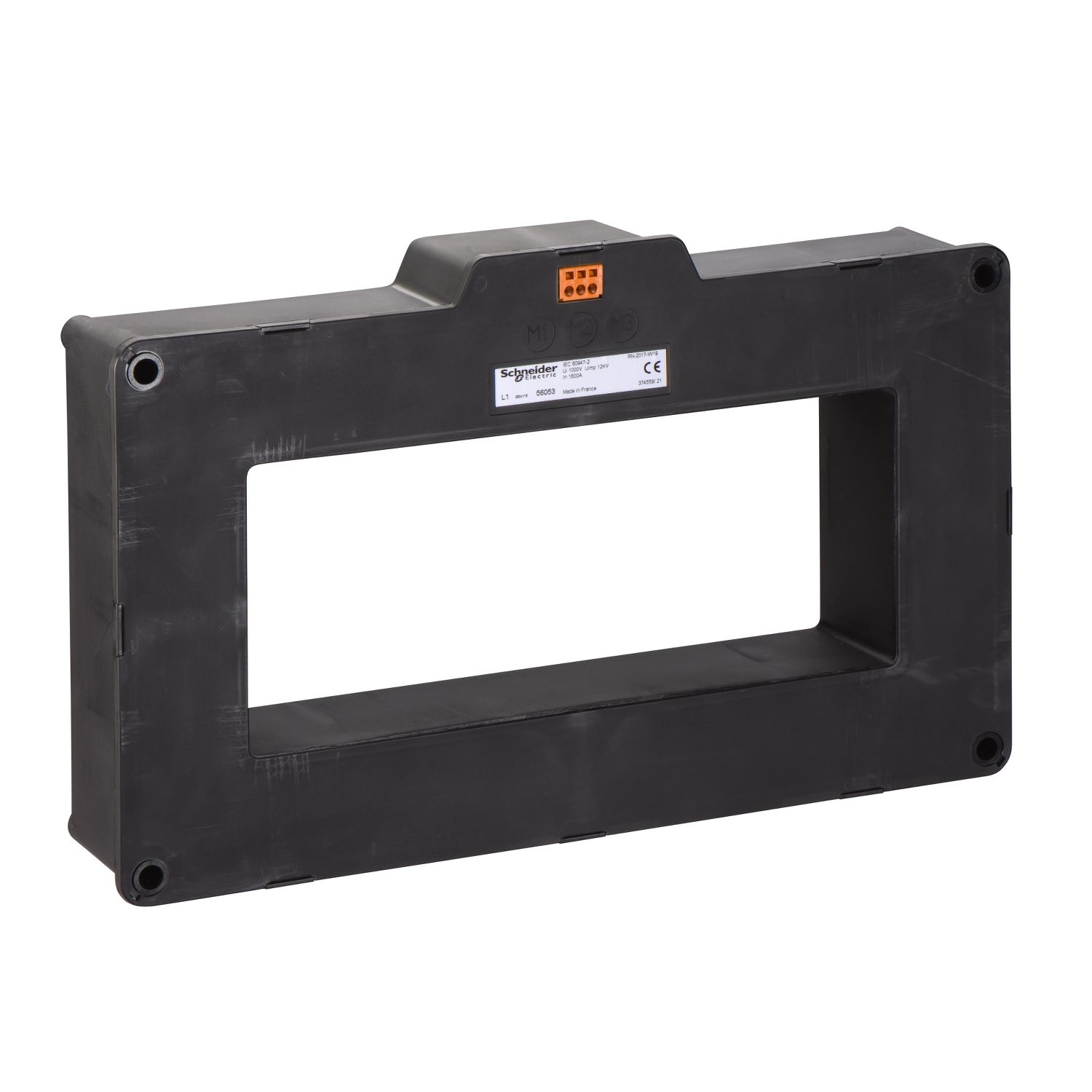

Rectangular sensor L2 type, VigiPacT, 470mmx160mm, 3200A

Manufacturer: Schneider Electric

SKU: 56054

GTIN: 3303430560548

Catalog

Instruction sheet

Old price: $11,847.00 inc GST

Price: $7,965.92 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This toroid is dedicated to VigiPacT type A residual current protection and monitoring relays. It allows the measurement of a current rating up to 3200A for VigiPacT monitoring and protection relays. The transformer ratio is 1/1000. The inner dimensions of the toroid are 470mm X 160mm and the weight is 20kg. The wiring size must be from 0.5 to 2.5 mm². The wiring length should not exceed 10m.

Products specifications

Attribute name	Attribute value
Main
Device short name	L
Device application	equipment monitoring and control
Current transformer type	rectangular sensor
[Ie] rated operational current	3200 A
Range	VigiPacT
Product or component type	earth leakage current sensor

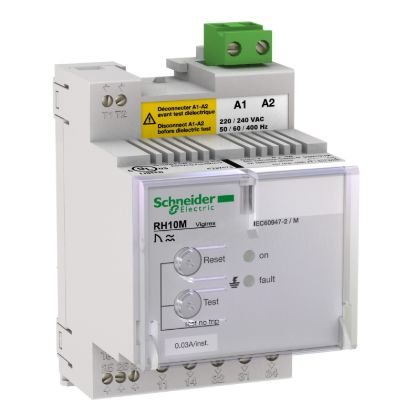

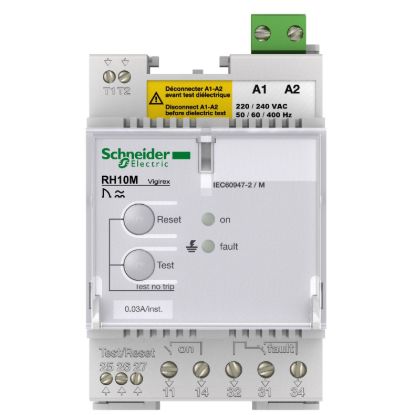

Range compatibility	VigiPacT RMH residual current protection relay, VigiPacT RHUs residual current protection relay, VigiPacT RHU residual current protection relay, VigiPacT RH197P residual current protection relay, VigiPacT RH197M residual current protection relay, VigiPacT RH99P residual current protection relay, VigiPacT RH99M residual current protection relay, VigiPacT RH86P residual current protection relay, VigiPacT RH86M residual current protection relay, VigiPacT RH68M residual current protection relay, VigiPacT RH21P residual current protection relay, VigiPacT RH21M residual current protection relay, VigiPacT RH10P residual current protection relay, VigiPacT RH10M residual current protection relay
Complementary
Transformer ratio	1/1000
[Icw] rated short-time withstand current	100 kA for 0.5 s
Depth	72 mm, inside: 72 mm, outside: 72 mm
Overvoltage category	IV
Width	572 mm, inside: 470 mm, outside: 572 mm
Height	inside: 160 mm, outside: 281 mm, 281 mm
Net weight	21.16 kg
Connections - terminals	screw connection 0.2-2.5 mm²
[Uimp] rated impulse withstand voltage	12 kV
Residual short-circuit withstand current	85 kA / 0.5 s
Mounting mode	fixed (busbar), fixed (cables)
Environment
IP degree of protection	IP30, connectors: IP20
Ambient air temperature for storage	-55-100 °C
Environmental characteristic	exposure to damp heat in service: category C2: 48 hours conforming to IEC 60068-2-56, salt mist: Kb/2 conforming to IEC 60068-2-52, exposure to damp heat not in service (25...55 °C, RH 95 %) : 28 cycles conforming to IEC 60068-2-30
Standards	IEC 60947-2
Ambient air temperature for operation	-35-80 °C
Product certifications	CE
