Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range | SpaceLogic C-Bus |

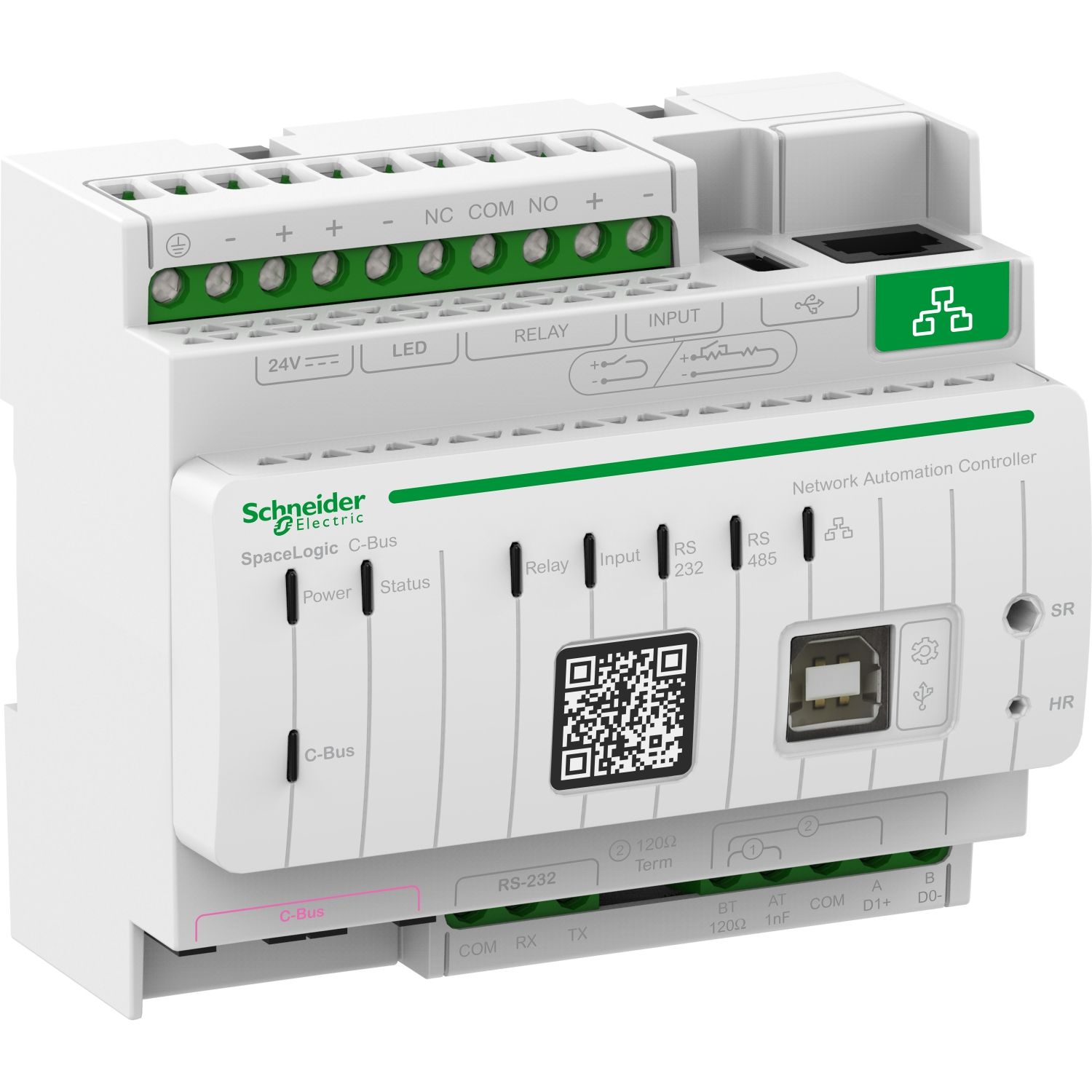

| Product name | C-Bus Automation Controller |
| Product or component type | logic controller |
| Complementary | |
| Web server | BMS controller compatible |
| Depth | 63 mm |
| Market segment | residential, buildings |
| Width | 93 mm |
| Web services | web server |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Local signalling | LED (green/yellow) for Ethernet link, LED (green) for C-Bus status, LED (multi-colour) for serial link communication (RS485, RX, TX), LED (multi-colour) for RS232 link activity, LED (multi-colour) for input status, LED (green) for relay output (REL), LED (green/red) for status indication, LED (green/red) for power |
| [Us] rated supply voltage | 24 V DC |
| Function available | visualisation, updateable software |
| Number of port | 1 RJ45 (Ethernet), 2 RJ45 (C-Bus), 1 RS485 (Modbus), 1 RS232 (serial link), 1 USB 1.1 type B, 1 USB 2.0 type A |
| Control type | RESET push-button, local control, remote control, by touch panel, by web browser, RESET push-button cold restart, smartphone or tablet |
| Connections - terminals | RS485 link: screw terminal 5 cable(s) 1.5-1.5 mm², RS232 link: screw terminal 3 cable(s) 1.5-1.5 mm², digital input: screw terminal 2 cable(s) 1.5-1.5 mm², relay digital output: screw terminal 3 cable(s) 1.5-1.5 mm², LED lamp: screw terminal 2 cable(s) 1.5-1.5 mm², power supply: screw terminal 3 cable(s) 1.5-1.5 mm² |
| Number of inputs | 1-1 dry contact |
| Communication port protocol | Modbus TCP RJ45, serial link terminal block RS232, IP (Internet Protocol) RJ45, Modbus RTU terminal block RS485 (31 devices), BACnet IP RJ45 (2000 devices), C-Bus RJ45 (4000 devices) |
| Power consumption in W | 2 W |
| Total number of 18 mm modules | 6 |
| Mounting support | DIN rail |
| Number of outputs | 1 relay changeover |
| Output voltage | 48 V AC 1 A for relay, 24 V DC 1 A for relay |
| Height | 108 mm |
| Input impedance | 6.9 kOhm opened, 2.2 kOhm closed |
| Environment | |
| Operating altitude | <= 2000 m |
| IP degree of protection | IP20 |
| Relative humidity | 10-90 % |
| Standards | EN 55035, EN 50491-5-2: class B, EN 55032: class A |
| Ambient air temperature for operation | -5-45 °C |
