Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | power supply |
| Accessory / separate part type | control units accessories |
| Range | MasterPacT |

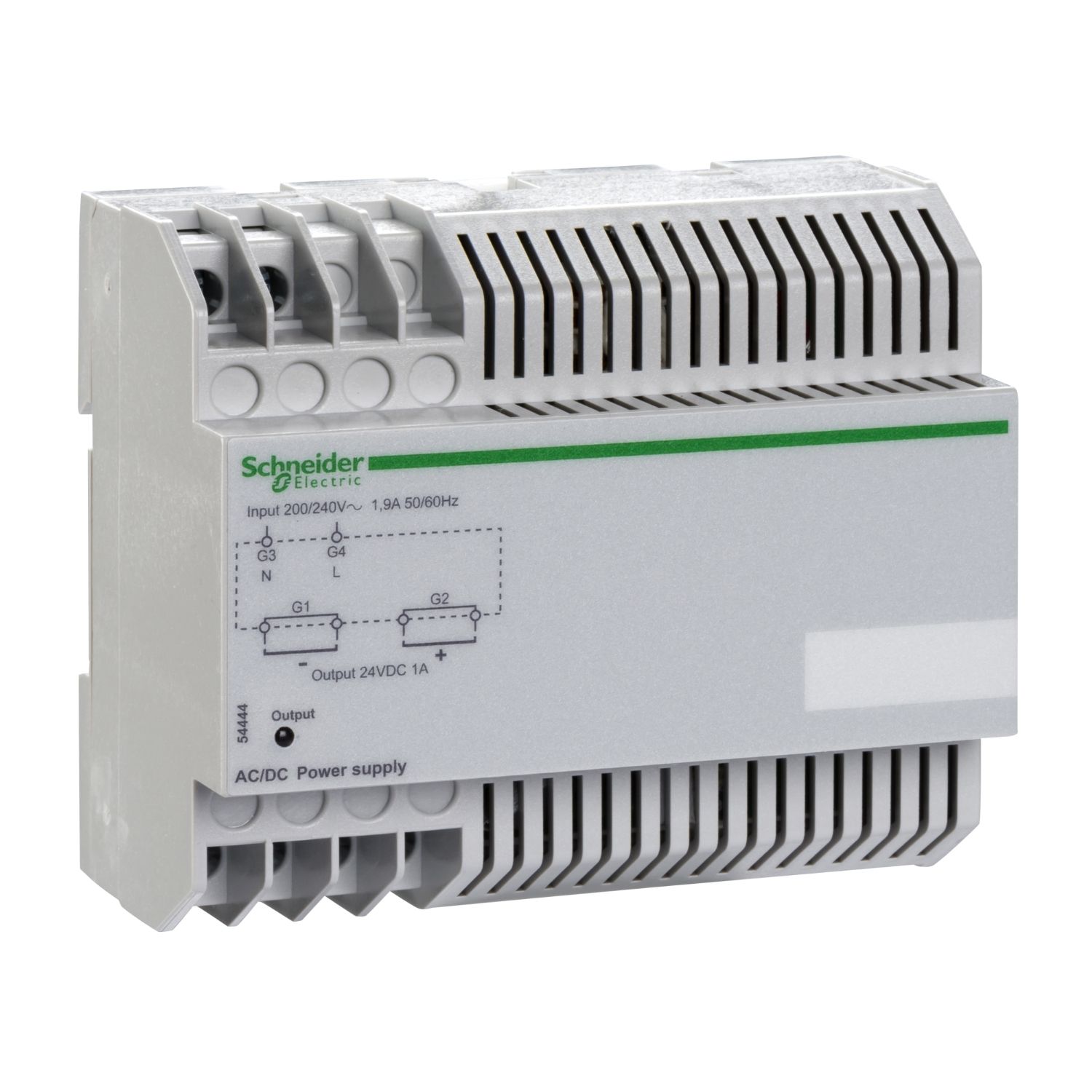

| Product or component type | external power supply module |
| Range compatibility | PowerPact PowerPact L circuit breaker, PowerPact PowerPact J circuit breaker, PowerPact PowerPact H circuit breaker, Masterpact MasterPact MTZ3 circuit breaker, Masterpact MasterPact MTZ2 circuit breaker, Masterpact MasterPact MTZ1 circuit breaker, PowerPact PowerPact Multistandard circuit breaker, ComPact ComPact NSX DC circuit breaker, ComPact ComPact NSX circuit breaker, ComPact ComPact NS circuit breaker, Masterpact MasterPact NW circuit breaker, Masterpact MasterPact NT circuit breaker |
| Range of product | NSX100...250, NSX400...630, MasterPact NW, NS1600b...3200, MasterPact NT, PowerPact multistandard, NSX400...630 DC, NS630b...1600, NSX100...250 DC |
| Complementary | |
| [Us] rated supply voltage | 110...130 V AC 50/60 Hz tolerance: +10 % -15 % |
| Width | 105 mm |
| Height | 88 mm |
| Overvoltage category | IV conforming to IEC 62477-1 |
| Depth | 59 mm |
| Trip unit name | MicroLogic |
| Output voltage | 24 V DC +/-5 % |
| Environment | |
| Compatibility code | CB_EXTERNAL_POWERSUPPLY |
Only registered users can write reviews
Customers who bought this item also bought

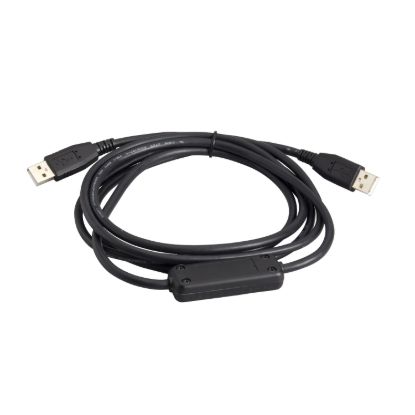

application transfer cable between terminal and PC - 2 m
