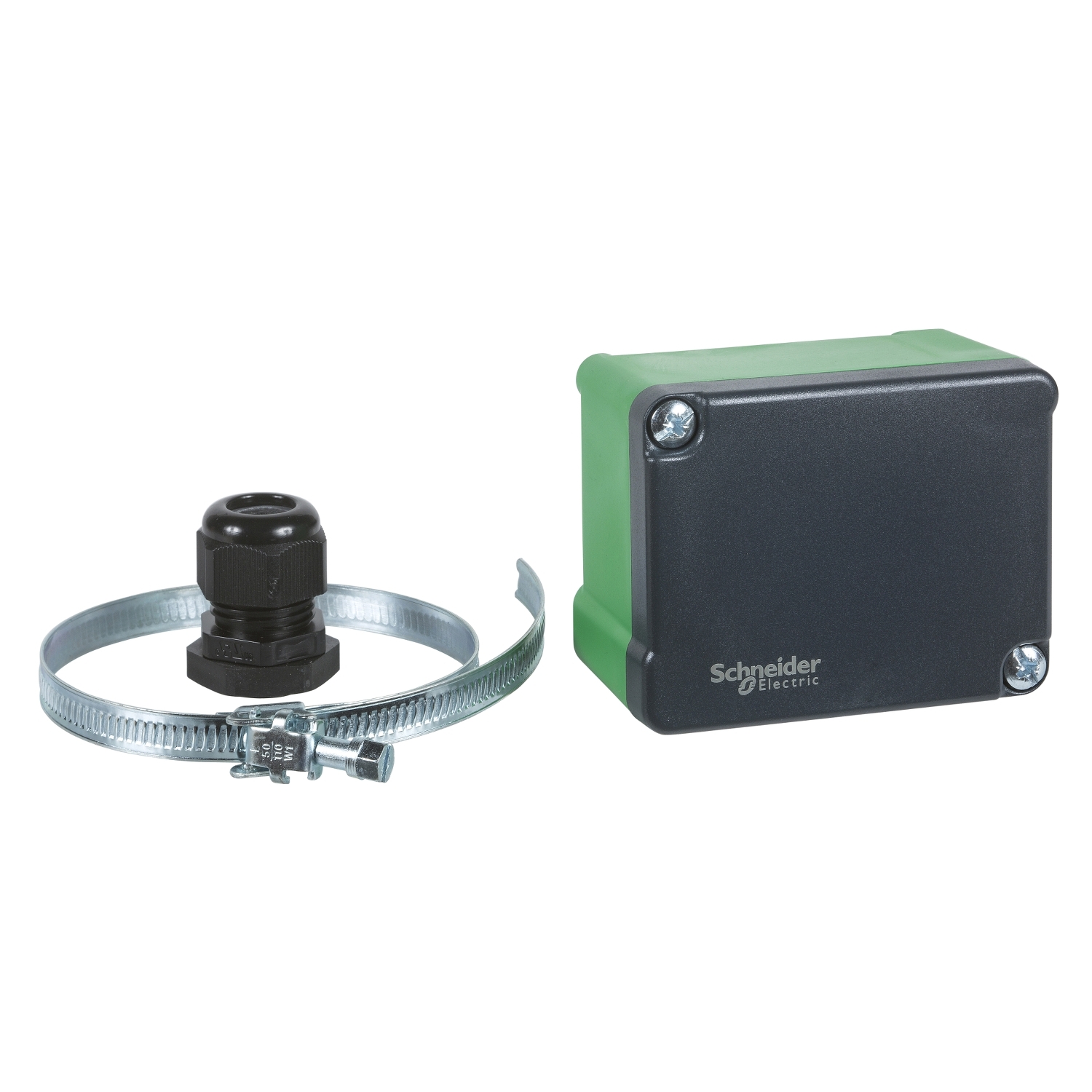

The STC housing is equipped with a Ø 20 mm (0.79 in.) cable fitting.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| IP degree of protection | IP65 |
| Device application | pipe |
| Product compatibility | Continuum |
| Colour | black and green |
| Mounting mode | strap-on |
| Location | plant room |
| Ambient air temperature for operation | -40-130 °C |
| Standards | EN 50082-1, EN 50081-1 |
| Range of product | STC500 |
| Height | 84 mm |
| Depth | 44 mm |
| Output type | resistive output |
| Width | 65 mm |
| Net weight | 0.115 kg |
| Product or component type | sensor |
| Type of measurement | temperature |
| Targeted region | Europe, Asia Pacific. |
| Complementary | |
| Former part number | 5123218010 |
| Time constant | 66000 ms |
| Number of cables | 1 <0.02 m |
| Material | PA (polyamide): connection box |
| Connections - terminals | wire (AWG 24...AWG 18) |
| Environment | |
| Product certifications | CE |
