SpaceLogic STP500 series are immersion temperature sensors and are intended for immersion mounting in pipe systems without requiring a pocket/well. STP500-50 comes with a probe of 50 mm length.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| IP degree of protection | IP65 |
| Device application | pipe immersion |
| Product compatibility | Continuum |
| Depth | 44 mm |
| Colour | black and green |
| Output type | resistive output |
| Width | 65 mm |
| Sensor type | 10 kOhm NTC temperature |
| Net weight | 0.1 kg |
| Location | plant room |
| Product or component type | sensor |
| Type of measurement | temperature |
| Targeted region | Europe, Asia Pacific. |
| Standards | EN 50082-2, EN 50081-1 |
| Mounting support | pipe |
| Range of product | STP500 |
| Height | 84 mm |
| Complementary | |
| Measurement accuracy | 0...25 °C +/- 0.3 °C |
| Number of cables | 1 <0.02 m |
| Material | stainless steel: immersion tube, PA (polyamide): connection box |
| Connections - terminals | wire (AWG 24...AWG 18) |
| Type of installation | immersion |
| Length | 50-50 mm for side sensor |
| Former part number | 5123170010 |
| Time constant | 24000 ms stainless steel PN 25 without contact paste, 23000 ms brass PN 16 without contact paste, 20000 ms stainless steel PN 25 with contact paste, 19000 ms brass PN 16 with contact paste |
| Environment | |
| Product certifications | CE |
Only registered users can write reviews
Related products
$30.25 inc GST
$40.01 inc GST

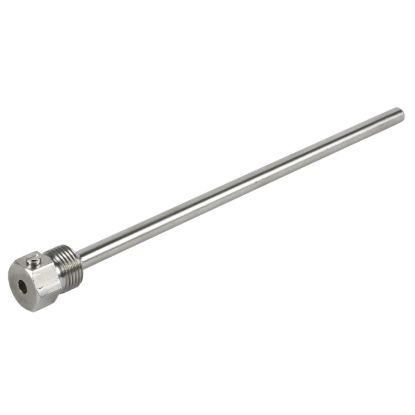

STP Series Pocket STP, 50 mm/1.97 in., Stainless Steel
