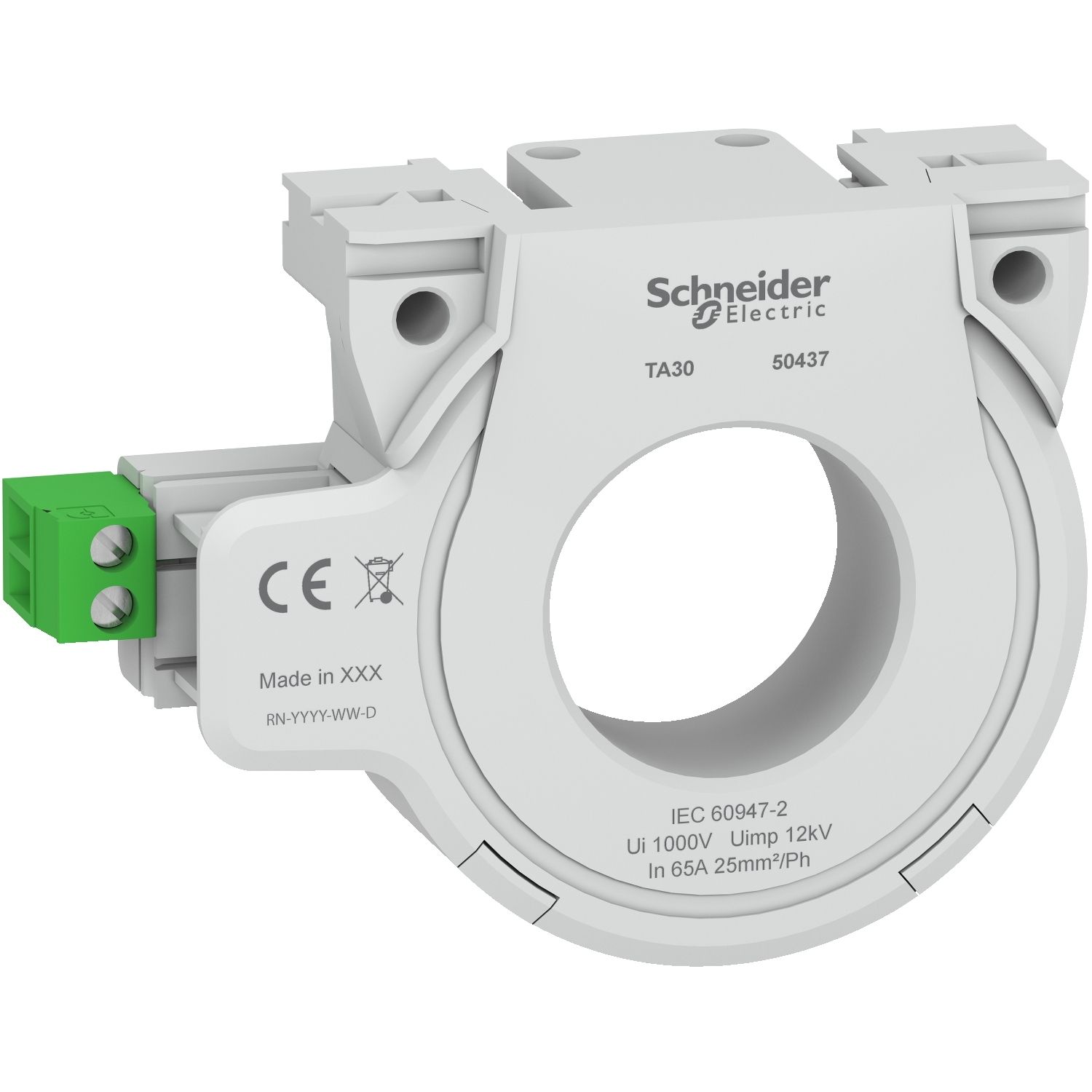

This toroid is dedicated to Vigilohm Insulation Fault locators, and to VigiPacT type A residual current protection and monitoring relays. It allows the monitoring of the injected component from Vigilohm Insulation Monitor, and the measurement of a current rating up to 65A for VigiPacT monitoring and protection relays. The transformer ratio is 1/1000. The inner diameter of the toroid is 30mm and the weight is 0.120kg. The cables must be centered within the toroid and the diameter represented by all these cables should not exceed 15 millimetres. The maximum cross section per phase (R, S, T, N) is 25mm² for a copper conductor.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | equipment monitoring and control |
| Current transformer type | A type closed toroid |
| [Ie] rated operational current | 65 A |
| Range compatibility | VigiPacT RMH residual current protection relay, VigiPacT RHUs residual current protection relay, VigiPacT RHU residual current protection relay, VigiPacT RH197P residual current protection relay, VigiPacT RH197M residual current protection relay, VigiPacT RH99P residual current protection relay, VigiPacT RH99M residual current protection relay, VigiPacT RH86P residual current protection relay, VigiPacT RH86M residual current protection relay, VigiPacT RH68M residual current protection relay, VigiPacT RH21P residual current protection relay, VigiPacT RH21M residual current protection relay, VigiPacT RH10P residual current protection relay, VigiPacT RH10M residual current protection relay |
| Device short name | TA30 |
| Range | VigiPacT |
| Product or component type | earth leakage current sensor |
| Complementary | |
| Diameter | 30 mm inner: |
| Compatibility code | TA30 |
| Calorific value | 0.98 MJ |
| Connections - terminals | screw connection 0.22-0.22 mm² |
| [Uimp] rated impulse withstand voltage | 12 kV |
| Height | 82 mm |
| Transformer ratio | 1/1000 |
| Overvoltage category | IV |
| Market segment | small commercial, residential |
| Net weight | 0.12 kg |
| Network type | AC/DC |
| Mounting mode | clip-on (Vigirex relay), clip-on (DIN rail), fixed (slotted backplate), fixed (profiled sheet metal), fixed (plain backplate) |
| [Icw] rated short-time withstand current | 85 kA for 0.5 s |
| Depth | 29 mm |
| Width | 60 mm |
| Cable outer diameter | 15-15 mm: 25-25 mm² (maximum) |
| [Ui] rated insulation voltage | 1000 V |
| Residual short-circuit withstand current | 85 kA / 0.5 s conforming to IEC 60947-2 |
| Network frequency | 45...440 Hz |
| Environment | |
| Ambient air temperature for storage | -55-85 °C |
| Product certifications | CE |
| IP degree of protection | IP30, connectors: IP20 |
| Pollution degree | level 3 conforming to IEC 60664-1 |
| Ambient air temperature for operation | -35-70 °C |
| Environmental characteristic | exposure to damp heat in service: category C2: 48 hours conforming to IEC 60068-2-56, salt mist: Kb/2 conforming to IEC 60068-2-52, exposure to damp heat not in service (25...55 °C, RH 95 %) : 28 cycles conforming to IEC 60068-2-30 |
| Standards | IEC 60947-2 |
