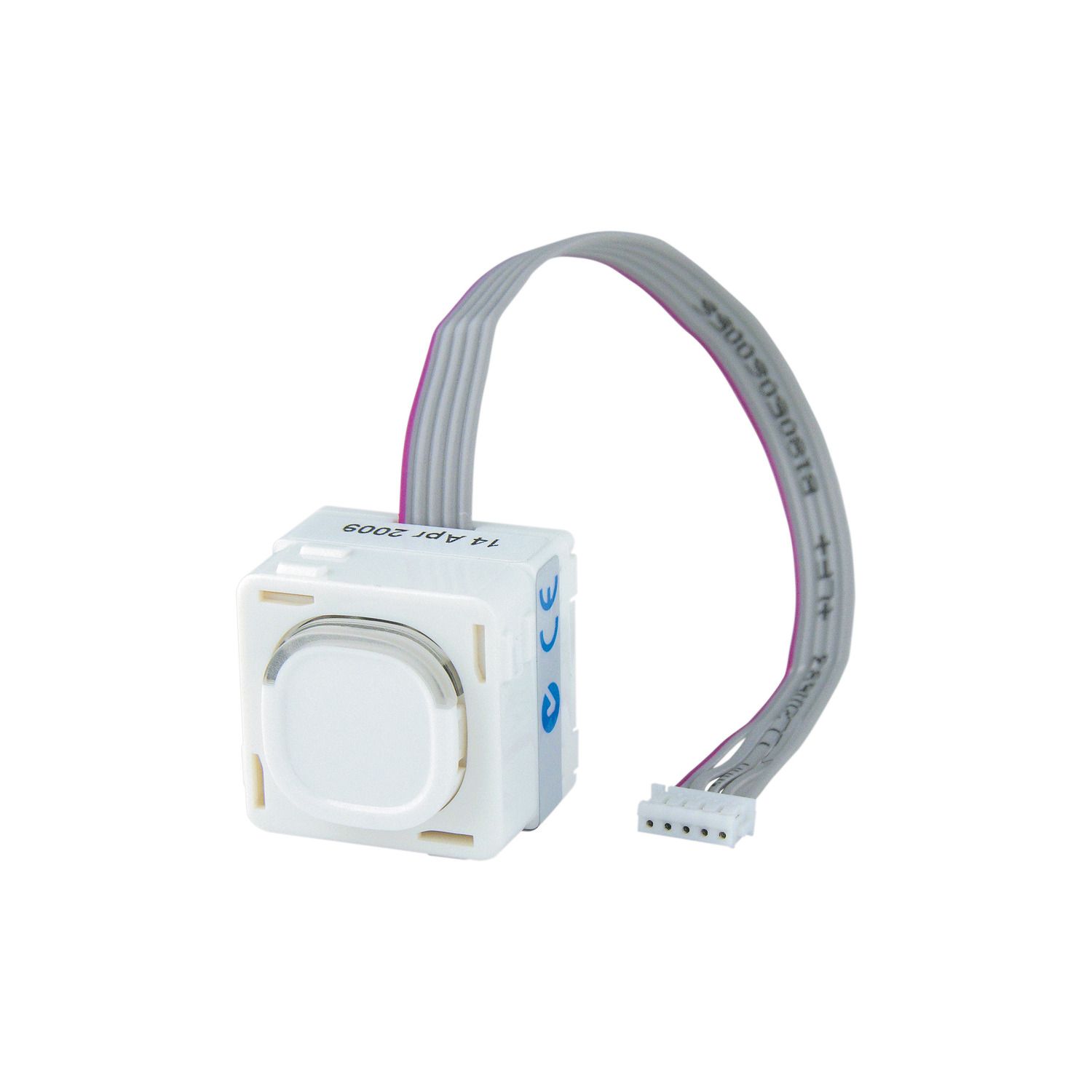

Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Switch application | blind control, fan speed control, shutter control, bell switch, scene control, timer, dimming up/down control, load switching |
| Device application | control |
| Colour | white |
| Range | C-Bus |
| Product name | Series 30M |
| Product or component type | push-button interface |
| Product brand | Clipsal |
| Complementary | |
| Device mounting | wall mounted by Series 30M grid |
| Depth | 20 mm |
| Width | 23 mm |
| Communication network type | C-Bus via 30 series master module |
| Type of cable | twisted unshielded pairs cable category 5e |
| Local signalling | LED (blue/orange) for status |
| Method of access | slave |
| Time delay range | 1s...18h12m15s |
| Dimmer control | 255 possible levels |
| Isolation voltage | 3.75 kV from C-Bus to mains |
| Input impedance | 100 kOhm at 1-1 kHz |
| Control type | push-button |
| Current consumption | 18 mA |
| Net weight | 0.007 kg |
| Material | plastic |
| Starting time | 5 s |
| Range compatibility | Iconic wall plate, C-Bus |
| [Ue] rated operational voltage | 15...36 V DC |
| Module configuration | programmed with C-Bus software, programmed with learn mode |
| Height | 23 mm |
| Environment | |
| Relative humidity | 10-95 % non-condensing |
| Standards | AS/NZS 60669.2.1, AS/NZS CISPR 14-1, AS/NZS CISPR 15 |
| Ambient air temperature for operation | 0-45 °C |
| Product certifications | RCM |
