Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

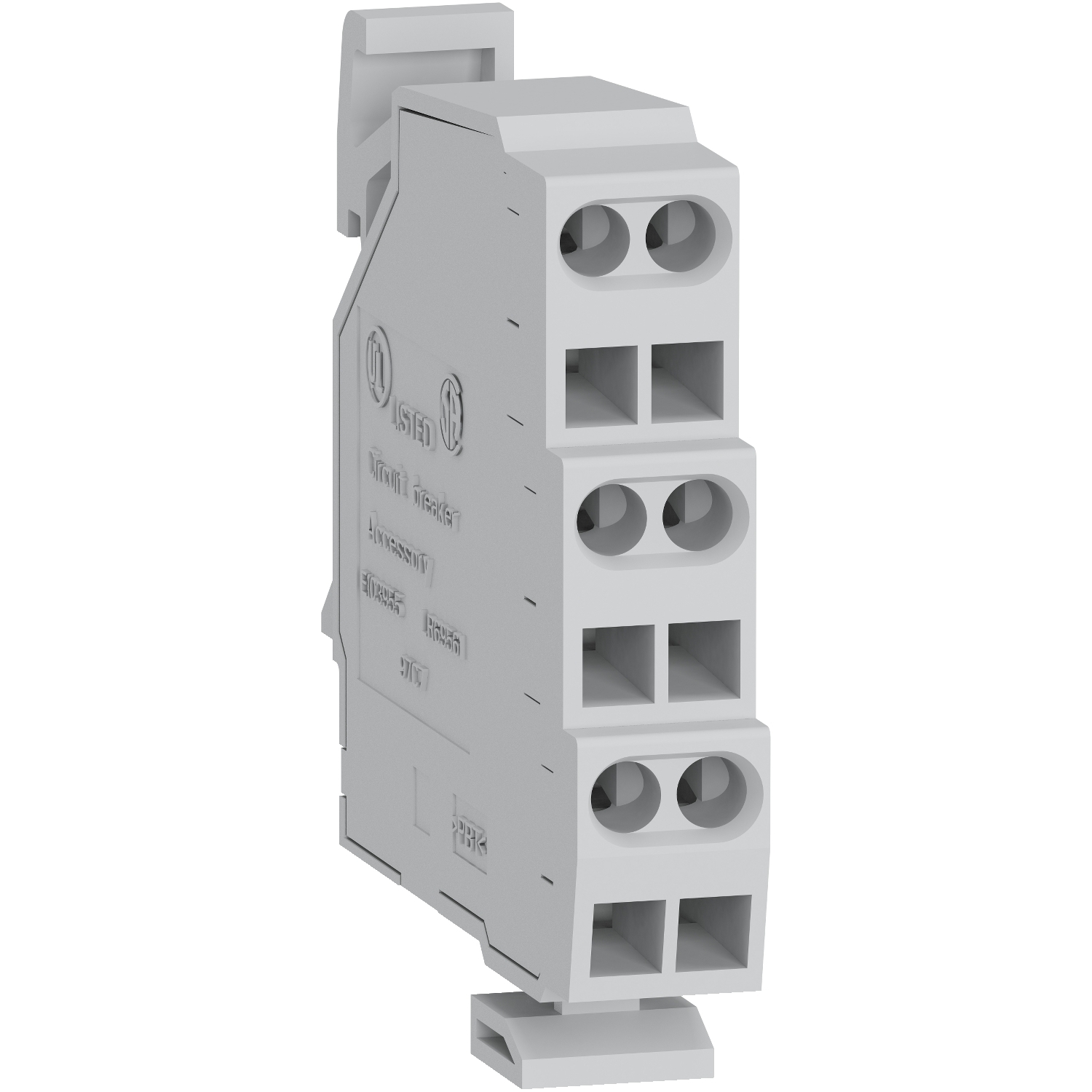

| Device short name | carriage switch |
| Device application | monitoring |
| Signal contacts composition | 1 NO/NC |
| Range | MasterPacT |
| Product or component type | auxiliary contact |
| Range compatibility | ComPact ComPact NS630b...1600, Masterpact MasterPact NW DC, Masterpact MasterPact NW, Masterpact MasterPact NT |
| Range of product | ComPact NS630b...1600 |
| Complementary | |
| Minimum load | 2 mA at 15 V |
| [Ie] rated operational current | AC-12: 5 A at 380 V AC 50/60 Hz, AC-12: 5 A at 240 V AC 50/60 Hz, AC-12: 5 A at 24/48 V AC 50/60 Hz, DC-12: 2.5 A at 24/48 V DC, DC-12: 0.8 A at 125 V DC, DC-12: 0.3 A at 250 V DC |
| Auxiliary contacts type | low level |
| Mounting mode | drawout |
| Accessory / separate part category | spare part for Compact NS630b...1600, spare part for MasterPact NW DC, spare part for MasterPact NW, spare part for MasterPact NT |
| Auxiliary contacts operation | test position, disconnected position, connected position |
