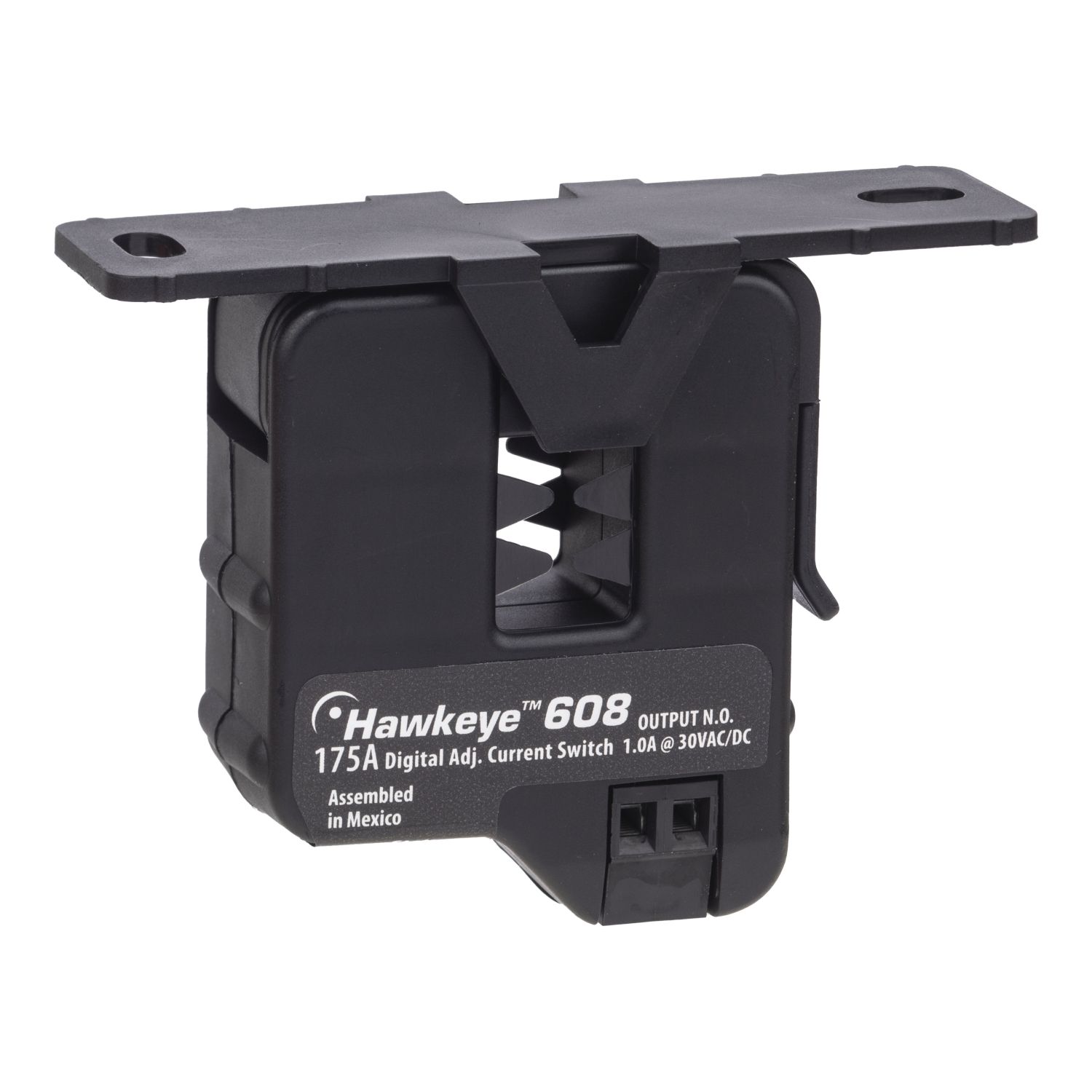

Current Switch: Split Core, H608-S6, 0.5 to 175 A continuous, N.O. 1.0 A at 30 VAC/VDC, not polarity sensitive, not polarity sensitive, Adjustable
Manufacturer: Schneider Electric
SKU: 3240103000
GTIN: 711426603552
The Schneider Electric range of current sensors delivers high performance and reliable current montoring solution for HVAC applications. The current switches are ideal solutions for applications including fan status, belt loss and most variable speed (VSD) applications. Current switches detect changes in a conductor's current/amperage and provide a digital output to Building management system (BMS) controller. The current switches are available in solid core versions for new projects and split core versions to accommodate retrofits. The Schneider current sensors are of highest quality and reliability with best in class ergonomics for easy installation. The products are CE certified. Jumperless design and self gripping iris for easy installation. High performance reliable sensors with jumperless and self gripping iris design ensure hasslefree installation. A wide range of product portfolio with low set point suitable for most of new as well as retrofit installation.
Old price: $128.26 inc GST
$169.62 inc GST
Supported cards
Supported cards

Products specifications

Attribute name Attribute value
Main
Product certifications UL, CE
Network frequency 50...60 Hz
Mounting support split core housing
Targeted region Europe, Asia Pacific.
Type of measurement AC current
Opening width 12 mm
Product or component type sensor
AWG gauge AWG 24...AWG 14
Current measurement range 0.5...175 A
Sensor type current switch, AC
Output type switch output
Range of product HX08 Series
Output current 1 A at 30 V AC/DC
Relative humidity 10-90 % RH, non-condensing
Device application building automation systems
Environment
Ambient air temperature for operation -15-60 °C
Contractual warranty
Warranty 18
