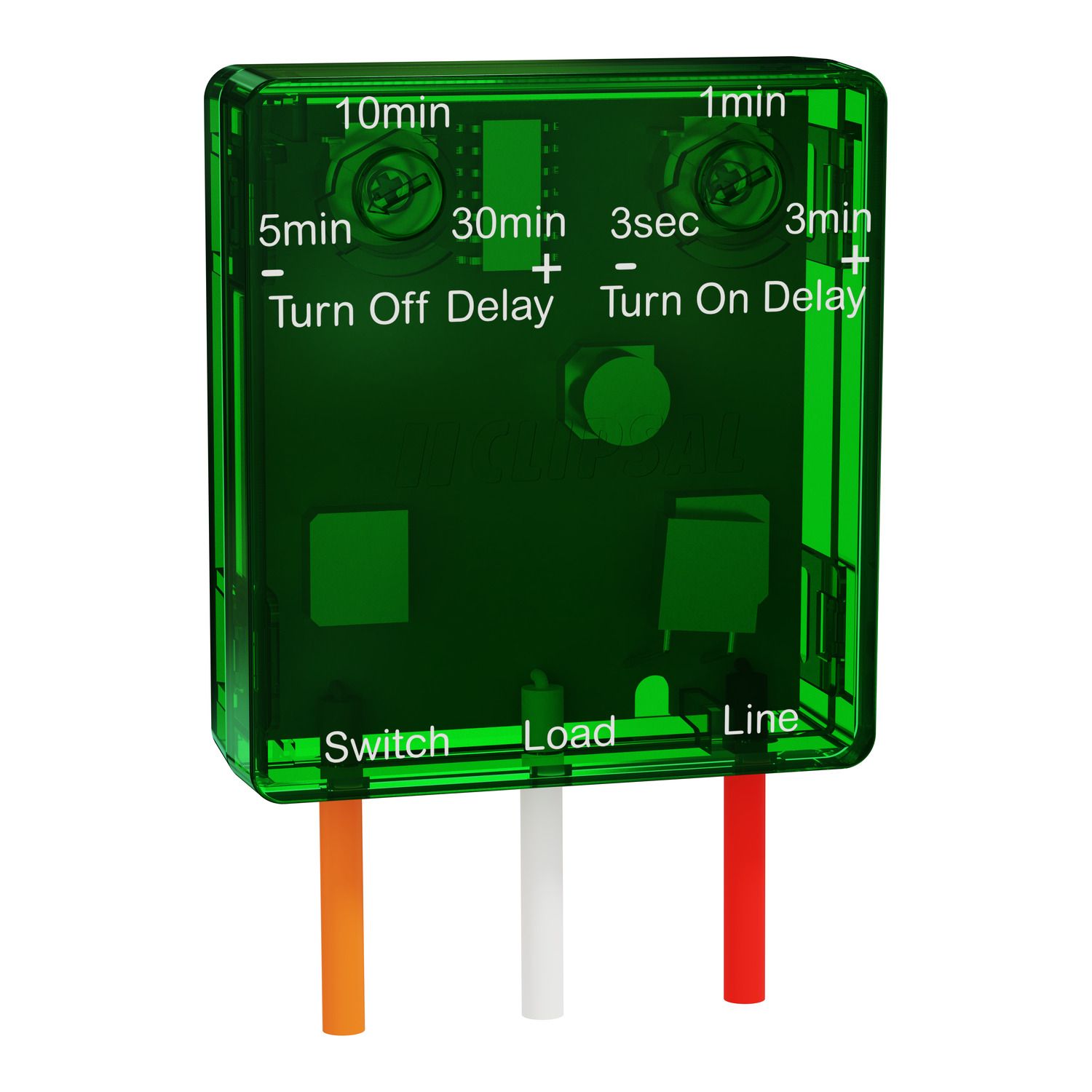

Run On timer, Standard Series, Clipsal, 1A, with selectable Turn ON and Turn OFF delays, translucent green
Manufacturer: Clipsal
SKU: 31ROFT
GTIN: 3606487157816
Designed for added convenience and to help save energy, this Clipsal Standard Series run on a timer that has selectable turn ON and turn OFF delays. When used alongside an exhaust fan and light switch, this device allows the exhaust fan to continue running even after the light switch is turned off. The selectable delay turns off the exhaust fan 5, 10, or 30 minutes after the light is switched off. You can also determine when the turn off delay is triggered, be it 3 sec, 1 min or 3 mins. The device has a small timer that is designed to sit behind the wall plate to easily comply with building regulations, and is fixed using screws. This product is designed for bathrooms that lack natural ventilation, such as those found in apartments and office buildings. The rated operating voltage is 230/240V at 50Hz and rated current 1A. The load handling of the motor is 2.5W to 240W. The dimensions of the product are (W) 41mm x (H) 40mm x (D) 12mm and the weight is 17g. The color of this device is translucent green. It is made of plastic material. The ambient air temperature for operation is from 0°C up to +50°C. It reaches IP30 degree of protection. The control of the exhaust fan run on time is based on the lighting switch status. It also has a small, compact design for easier installation. This device is compliant with AS/NZS 60335.1.2020+A1 and AS/NZS 60335.2.80.2016+A1+A2 standards.
Availability: Out of stock
Old price: $68.53 inc GST
$98.68 inc GST
Supported cards
Supported cards

Products specifications

Attribute name Attribute value
Main
Product or component type run on timer
Range of product Standard Series
Range Standard Series
Product brand Clipsal
Device presentation mechanism
Complementary
Network frequency 50 Hz
Fixing mode by screws
Autonomy 5 minutes
Material plastic
Width 41 mm
Depth 12 mm
[Ue] rated operational voltage 230/240 V AC
Surface finish glossy
IP degree of protection IP30
Main colour tint translucent green
Device mounting flush
Net weight 17 g
Height 40 mm
Rated current 1 A
Contractual warranty
Warranty 36
