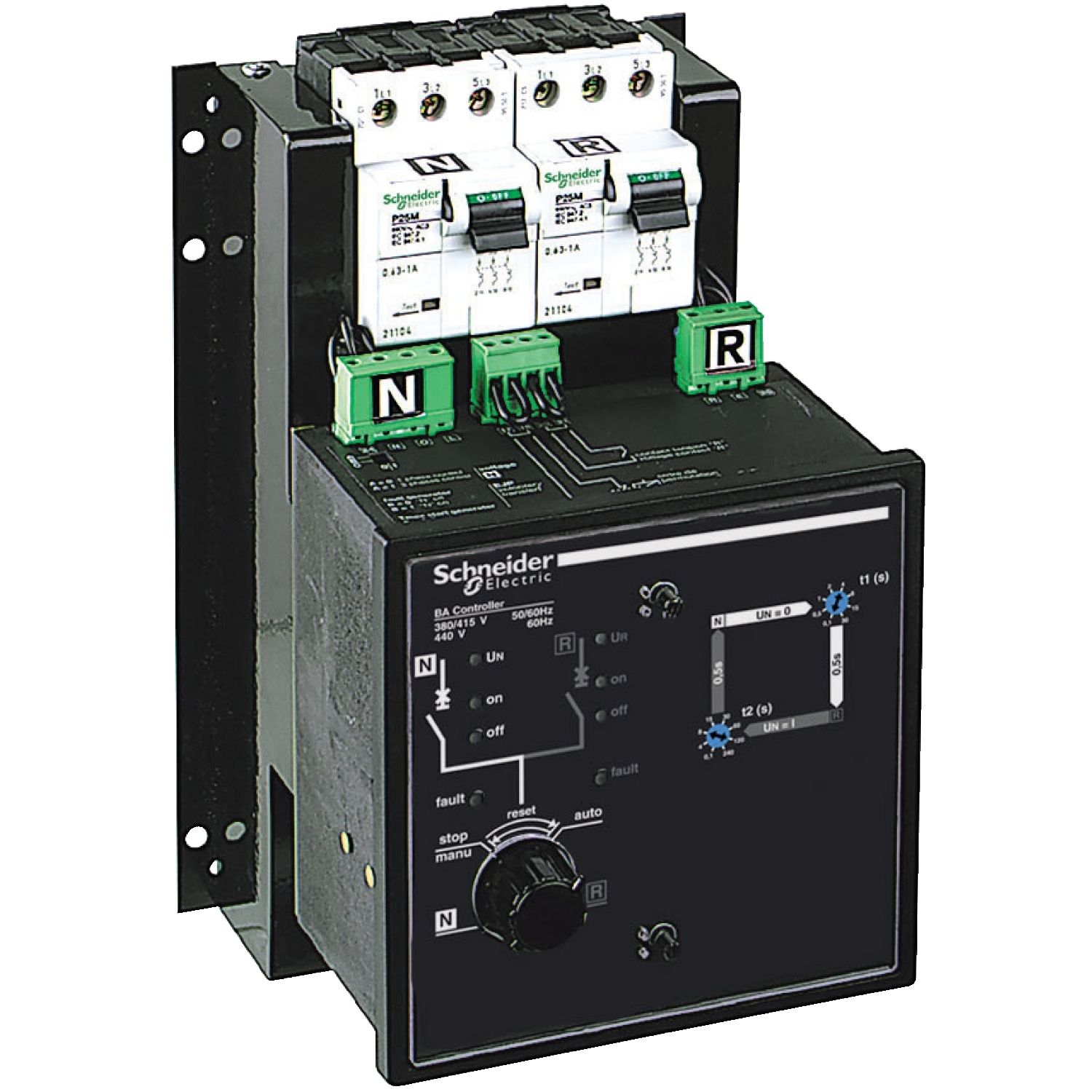

It is a remote controlled source changeover system for Compact NSX, Compact NS and Masterpact devices. It is composed of an ACP plate and of an integrated BA controller. This ACP provides in a single unit the protection of the controller, the control and the connection to the devices. The BA controller is used to create simple source-changeover system that switch from one source to another depending on the presence of voltage UN on the “Normal” source. The BA controller is generally used to manage two permanent sources. The control voltage is from 380VAC to 415VAC 50/60Hz, or 440VAC 60Hz.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Us] rated supply voltage | 440 V AC at 60 Hz, 380...415 V AC at 50/60 Hz |
| Device short name | ACP + BA |
| Product or component type | interface and control unit |
| Accessory / separate part category | interlocking accessory |
| Range compatibility | Masterpact MasterPact NW circuit breaker, Masterpact MasterPact NT circuit breaker, ComPact ComPact NSX circuit breaker, ComPact ComPact NS circuit breaker |
| Range of product | NSX100...250, MasterPact NW, ComPact NS630b...1600, NSX400...630, MasterPact NT, Compact NS100...630 |
| Complementary | |
| Product compatibility | Compact NSX400...630, Compact NS630b...1600, Compact NSX100...250 |
| Local signalling | off, fault trip, on |
| Test function | by opening the P25M circuit breaker supplying the controller |
| Input type | contacts customer voluntary order to transfer to source R |
| Compatibility code | ACP+BA |
| [Ie] rated operational current | DC-13: 2 A AC 24 V, DC-12: 8 A DC 24 V, DC-12: 2 A DC 48 V, DC-12: 0.6 A DC 110 V, DC-12: 0.4 A DC 250 V, AC-15: 5 A AC 48 V, AC-15: 5 A AC 24 V, AC-15: 4 A AC 110 V, AC-15: 3 A AC 220/240 V, AC-14: 5 A AC 48 V, AC-14: 5 A AC 24 V, AC-14: 4 A AC 220/240 V, AC-14: 4 A AC 110 V, AC-13: 7 A AC 48 V, AC-13: 7 A AC 24 V, AC-13: 6 A AC 220/240 V, AC-13: 6 A AC 110 V, AC-12: 8 A AC 48 V, AC-12: 8 A AC 24 V, AC-12: 8 A AC 220/240 V, AC-12: 8 A AC 110 V, AC-12: 5 A AC 380/415 V, AC-12: 4 A AC 440 V |
| Selection modes | circuit breaker on R, circuit breaker on N |
| Output type | contacts customer: indication of operation in automatic or stop mode |
| Operating mode | forced operation on normal source, forced operation on replacement source, stop (both normal and replacement source off), automatic operation |
| Complementary function | additional contact: transfer to replacement source only if contact is closed, voluntary transfer to replacement source (e.g. energy management commands) |
| [Ith] conventional free air thermal current | 8 A |
| Interlocked device | Compact NS100...630, NSX400...630, Compact NS630b...1600, NSX100...250, MasterPact NT, MasterPact NW |
| Environment | |
| IP degree of protection | IP30 side: conforming to EN 60529, IP40 front: conforming to EN 60529, IP20 connectors: conforming to EN 60529 |
| Standards | IEC 947-5-1 |
| IK degree of protection | front: IK07 conforming to EN 50102 |
