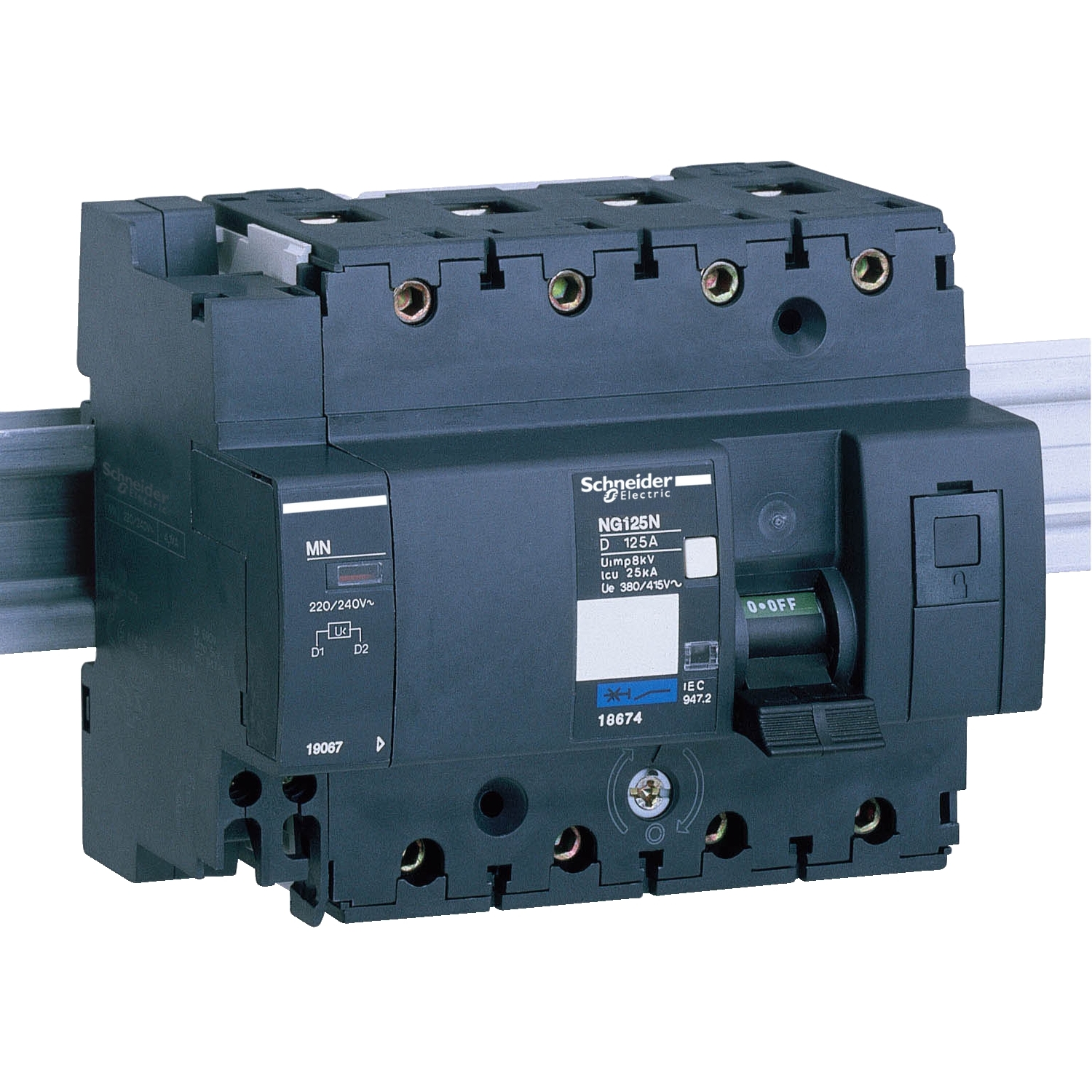

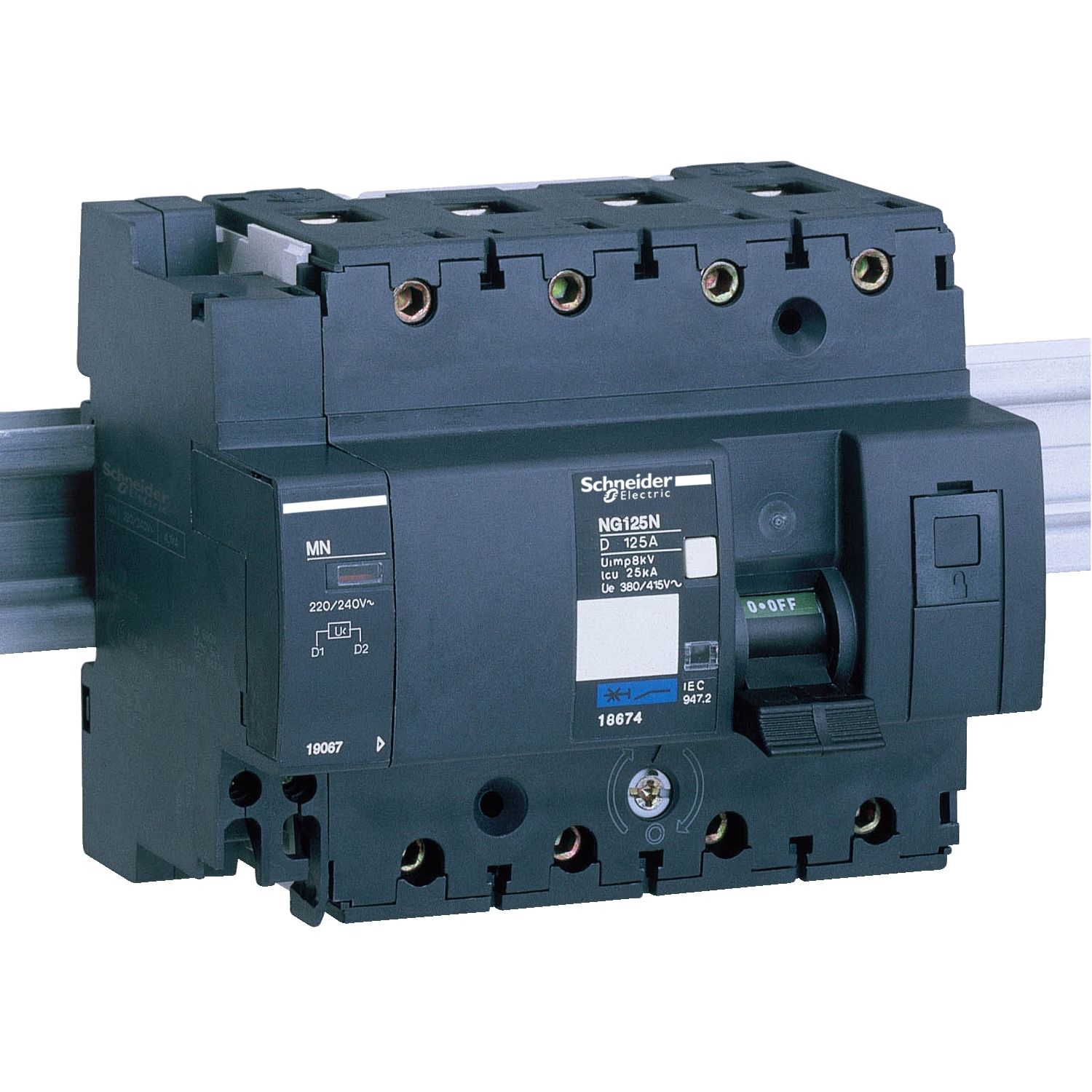

This Acti9 MN electrical auxiliary is a undervoltage release device. It is dedicated to NG125. It prevents device closing again until its input voltage has been restored. The width in 9mm pitches is 4. The product trips the associated device when it is powered on. The Uc control circuit voltage is 230…240VAC. It can be mounted on a DIN rail for modular installation. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product complies with IEC/EN 60947-5-1 standards.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | MN |
| Product compatibility | NG125 |
| Control type | standard |
| Range | Acti9 |
| Product or component type | undervoltage release |
| 9 mm pitches | 2 |
| Range of product | NG125 |
| [Uc] control circuit voltage | 230...240 V AC 50/60 Hz |
| Complementary | |
| Tightening torque | 1-1 N.m |
| Depth | 78 mm |
| Market segment | small commercial |
| Width | 32 mm |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to EN/IEC 60947-5-1 |
| Local signalling | action indicator |
| Compatibility code | MN |
| Electrical durability | 10000 cycles conforming to EN/IEC 60947-5-1 |
| Mounting mode | fixed |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to EN/IEC 60947-5-1 |
| Connections - terminals | plate terminal - 2 cable(s) 1.5-1.5 mm² - flexible with ferrule, plate terminal - 2 cable(s) 2.5-2.5 mm² - rigid, plate terminal - 2 cable(s) 2.5-2.5 mm² - flexible, plate terminal - 1 cable(s) 0.5-1.5 mm² - flexible with ferrule, plate terminal - 1 cable(s) 0.5-1.5 mm² - flexible, plate terminal - 1 cable(s) 0.5-2.5 mm² - rigid |
| Wire stripping length | 10 mm, 9 mm |
| Net weight | 0.134 kg |
| Range compatibility | Acti 9 Acti9 NG125, Acti 9 Acti9 NG125NA, Acti 9 Acti9 NG125LMA, Acti 9 Vigi NG125 |
| Mounting support | 35 mm symmetrical DIN rail |
| Height | 113 mm |
| Environment | |
| Overvoltage category | II |
| Relative humidity | 95-95 % at 55-55 °C |
| Ambient air temperature for storage | -40-85 °C |
| Pollution degree | 3 conforming to EN/IEC 60947-5-1 |
| IP degree of protection | IP4 conforming to EN/IEC 60947-5-1, IP20 B conforming to EN/IEC 60947-5-1 |
| Tropicalisation | 2 conforming to EN/IEC 60947-5-1 |
| Standards | EN/IEC 60947-5-1 |
| Ambient air temperature for operation | -25-60 °C |
| Product certifications | ASTA, KEMA, ASEFA, LCIE |
