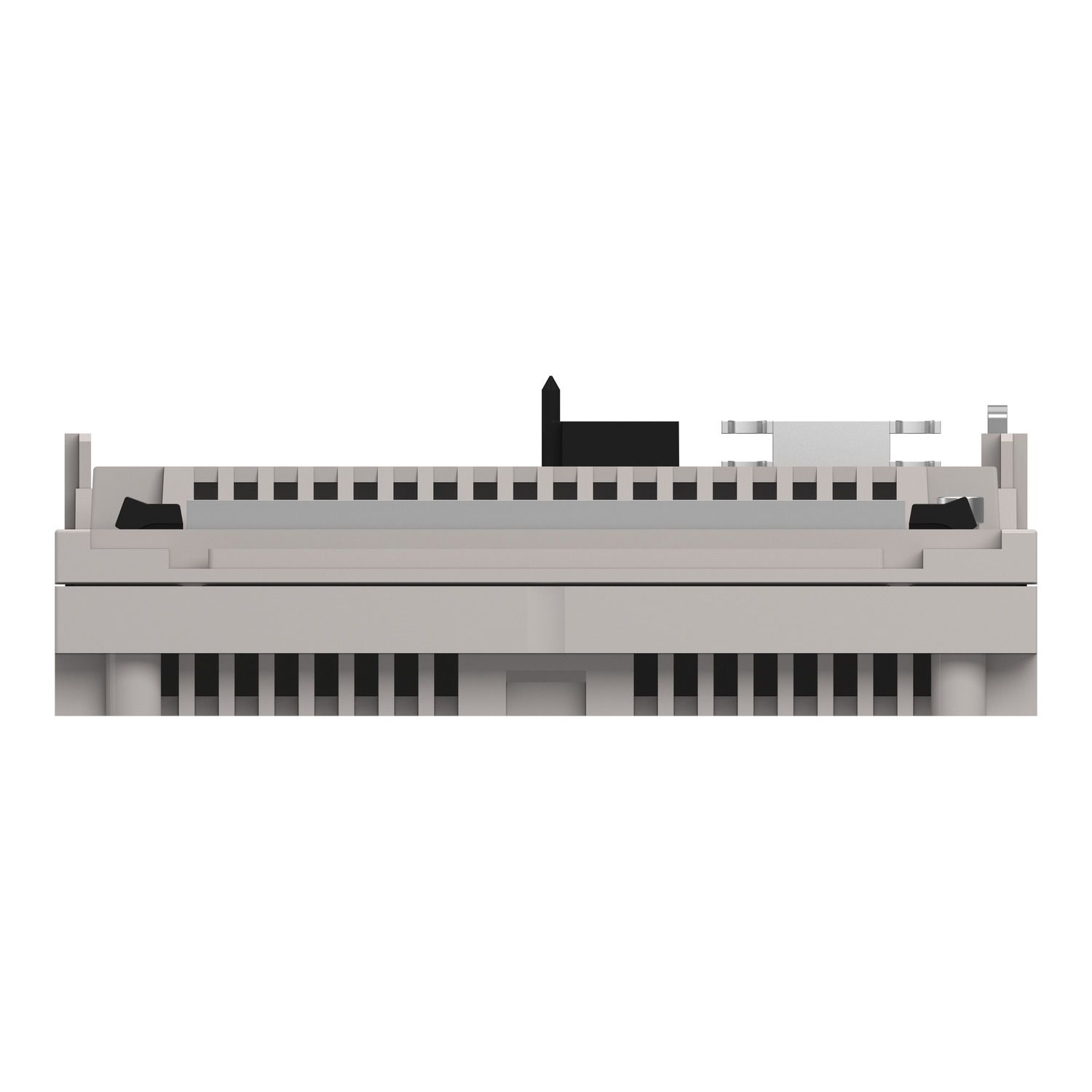

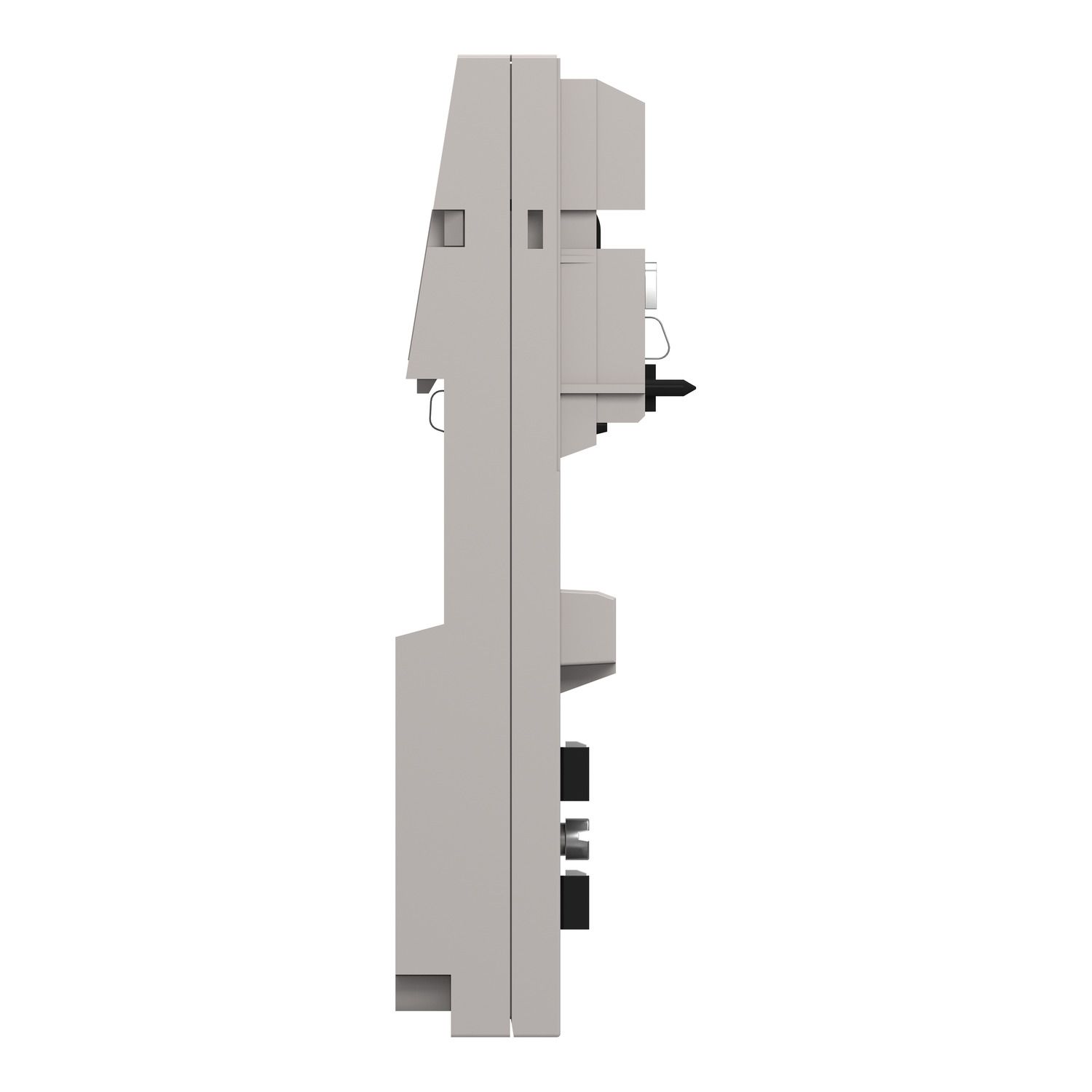

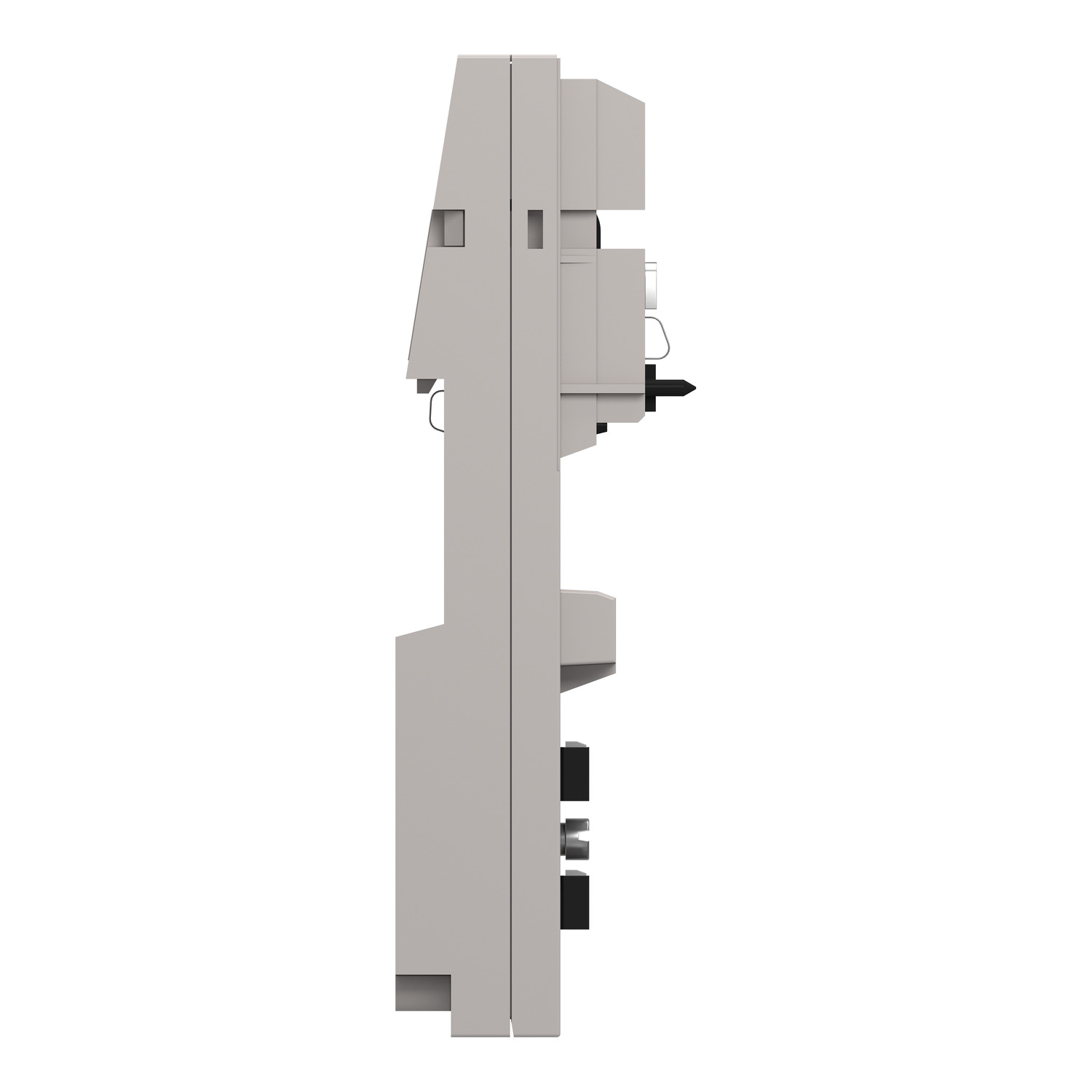

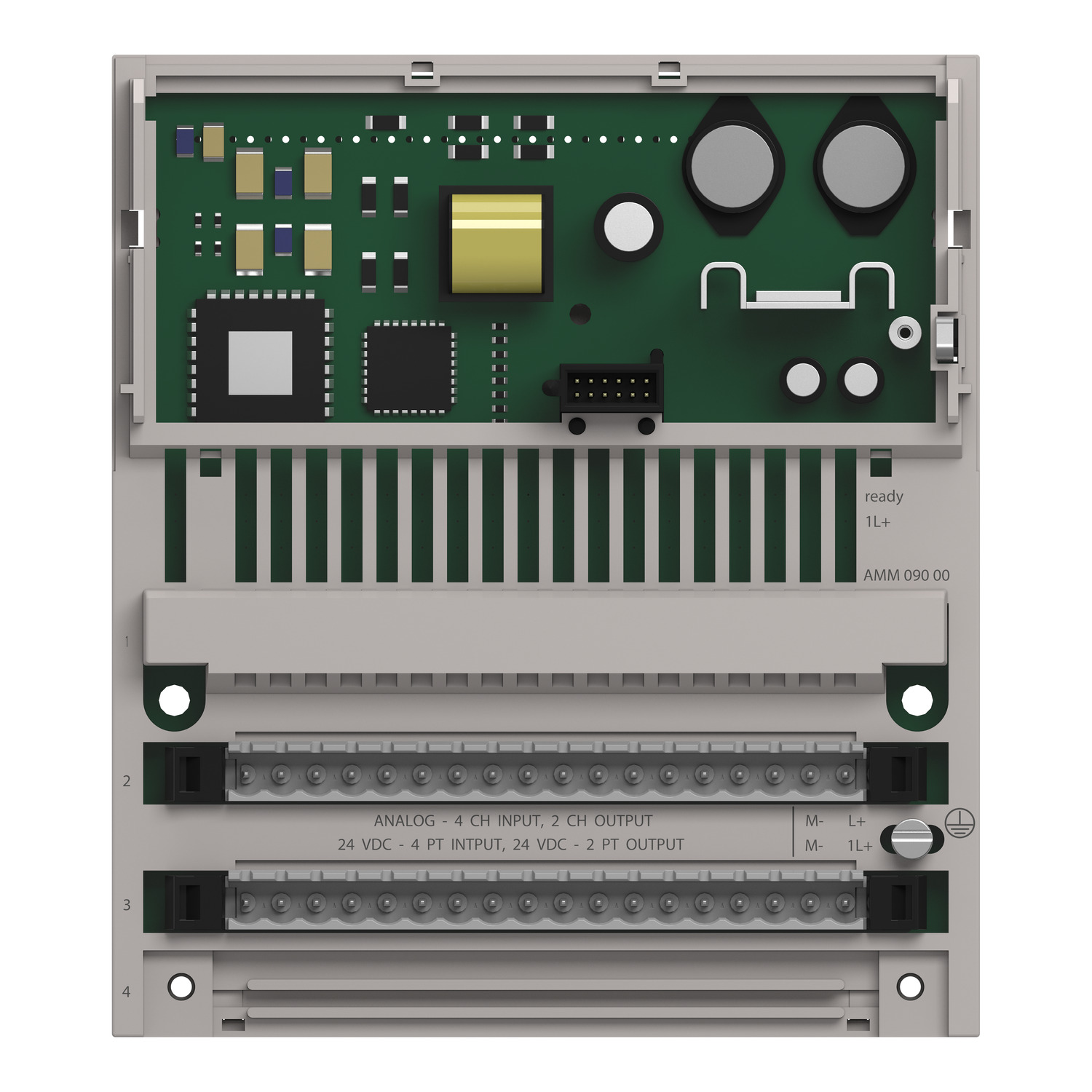

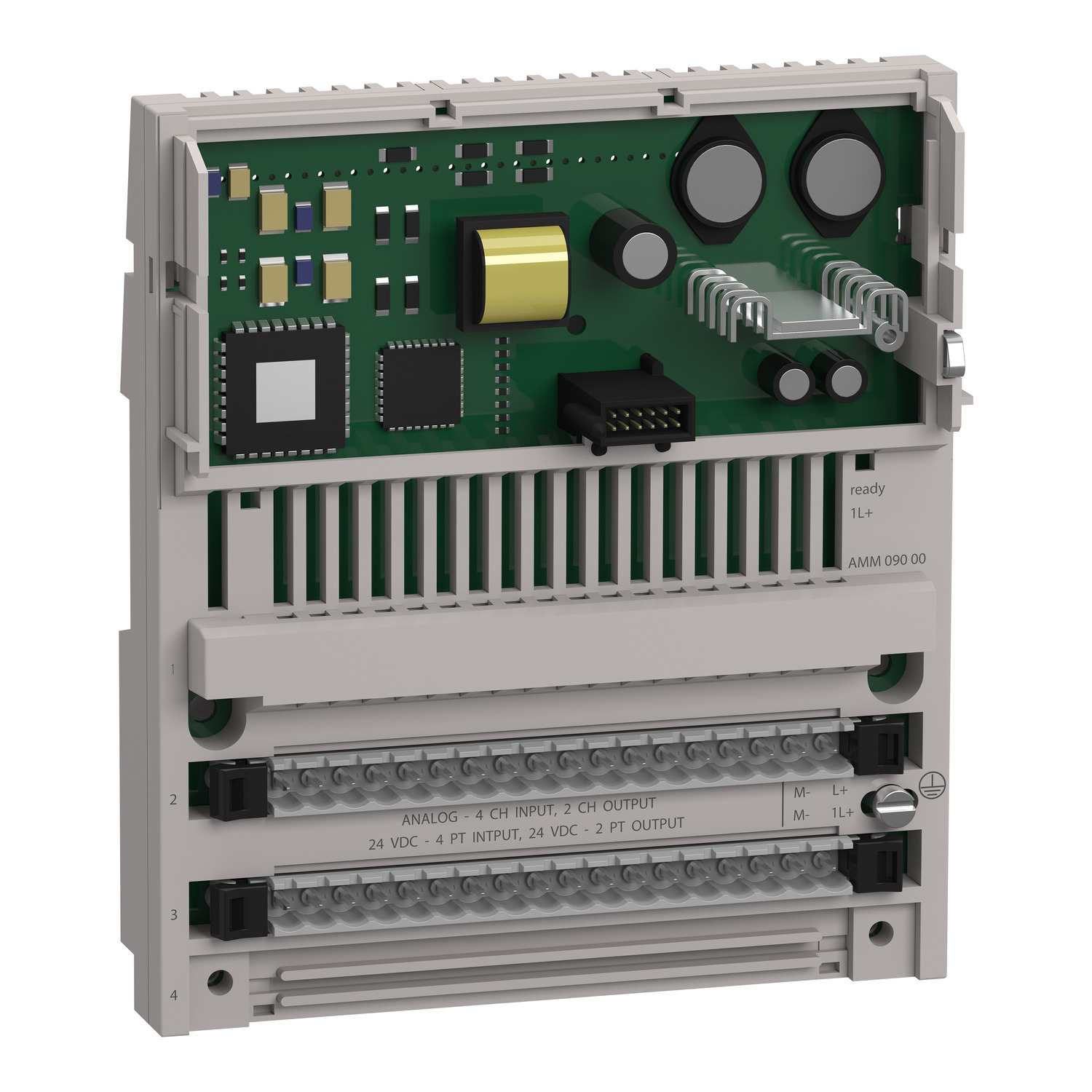

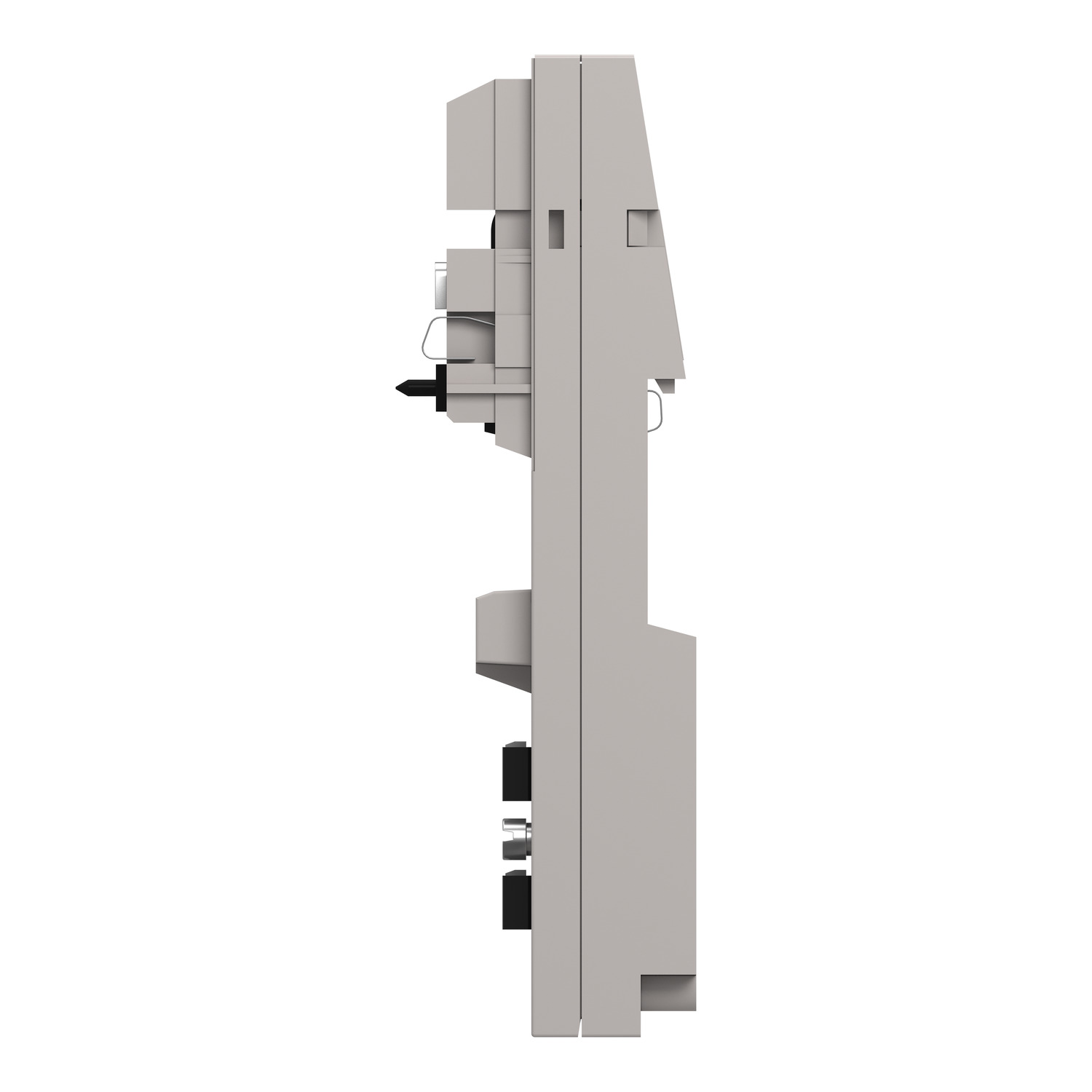

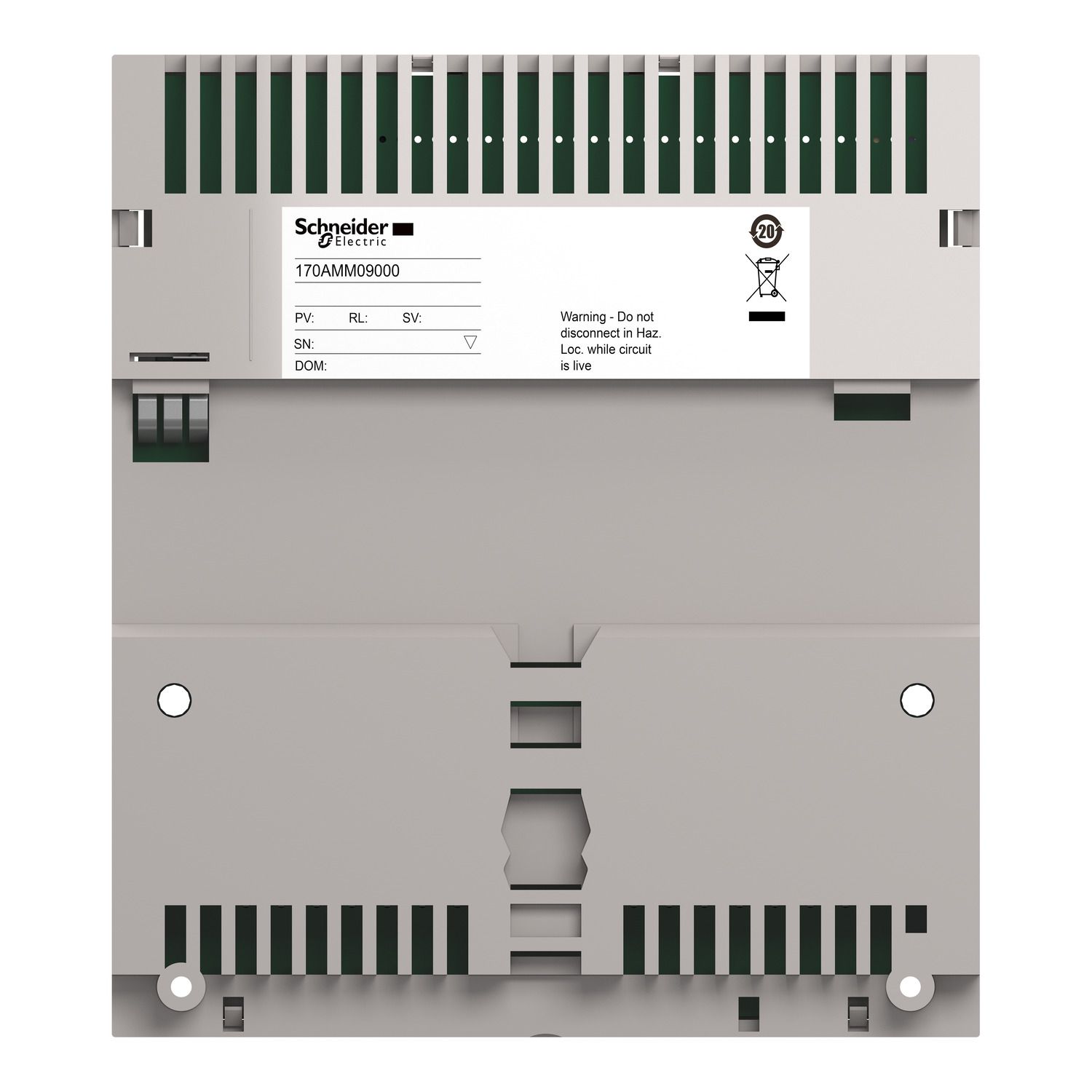

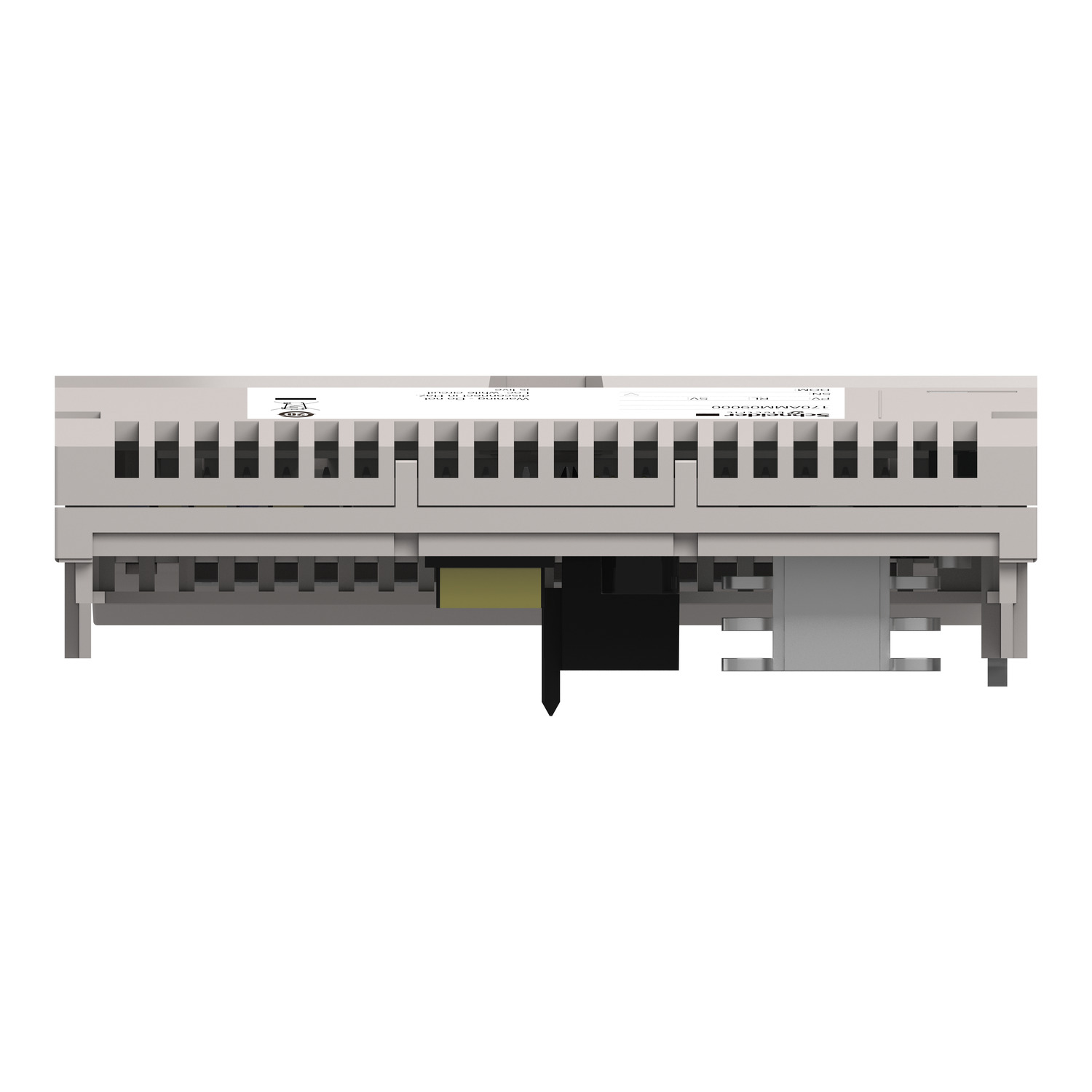

Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Analogue input type | single ended |
| Analogue input range | +/- 10 V DC |
| Range of product | Modicon Momentum automation platform |
| Group of channels | 1 group of 4 analog outputs, 1 group of 6 analog inputs, 2 groups of 4 discrete inputs, 1 group of 8 discrete outputs |
| Discrete output voltage | 10...30 V |
| Output short-circuit protection | with discrete output |
| Analogue output range | +/- 10 V 14 bits |
| Analogue input resolution | 14 bits +/- 10 V |
| Product or component type | analogue,discrete I/O base |
| Output overload protection | with discrete output |
| Discrete input voltage | 24 V DC |
| Complementary | |
| Discrete input number | 8 conforming to IEC 1131-2 Type 2 |
| Input overvoltage protection | 45-45 V 10 s discrete input |
| Discrete input logic | positive |
| Maximum power dissipation in W | 6 W |
| Current state 0 guaranteed | <= 2 mA (discrete input) |
| Voltage state 0 guaranteed | <= 5 V for discrete input |
| Discrete output current | 0.25 A per point, 2 A per module, 2 A per group |
| Input voltage limits | 3...32 V |
| Marking | CE |
| Response time | 1.2 ms from state 1 to state 0 for discrete input, 1.2 ms from state 0 to state 1 for discrete output, 1.2 ms from state 0 to state 1 for discrete input, 1.05 ms from state 1 to state 0 for discrete output |
| [Us] rated supply voltage | 24 V (19.2-30 V)DC |
| Discrete output logic | positive |
| Height | 125 mm |
| Discrete output type | transistor |
| Depth | 47.5 mm |
| Width | 141.5 mm |
| Conversion time | 1.2 ms analogue output, 0.75 ms analogue input circuit |
| Local signalling | 8 LEDs for channel status |
| Input resistance | 1 MOhm analogue input circuit |
| Fail state | for analogue output: reset to zero, for analogue output: hold |
| Isolation voltage | 500 V (duration = 1 min) between operating voltage and I/O from ground, 500 V (duration = 1 min) between analogue I/O and operating voltage |
| Voltage state 1 guaranteed | >= 11 V for discrete input |
| Maximum leakage current | 0.4 mA DC 30 V discrete output |
| Net weight | 0.24 kg |
| Surge current | 2.5 A 1 ms discrete output |
| Current state 1 guaranteed | >= 6 mA (discrete input) |
| Current consumption | 400 mA at 24 V DC |
| Maximum voltage drop | <0.4 V 0.25 A at state on discrete output |
| Conversion error | +/- 0.4 % +/- 10 V 25 °C analogue output |
| Output load | >= 2 kOhm +/- 10 V analogue output |
| Electrical connection | 2 connectors for removable terminal blocks |
| Maximum analogue input voltage | 15 V |
| Environment | |
| Protective treatment | TC |
| Resistance to electrostatic discharge | 8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2 |
| Relative humidity | 95-95 % without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Resistance to electromagnetic fields | 10 V/m 80...1000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0-60 °C |
| Operating altitude | <= 5000 m |
| Product certifications | CSA, UL |
