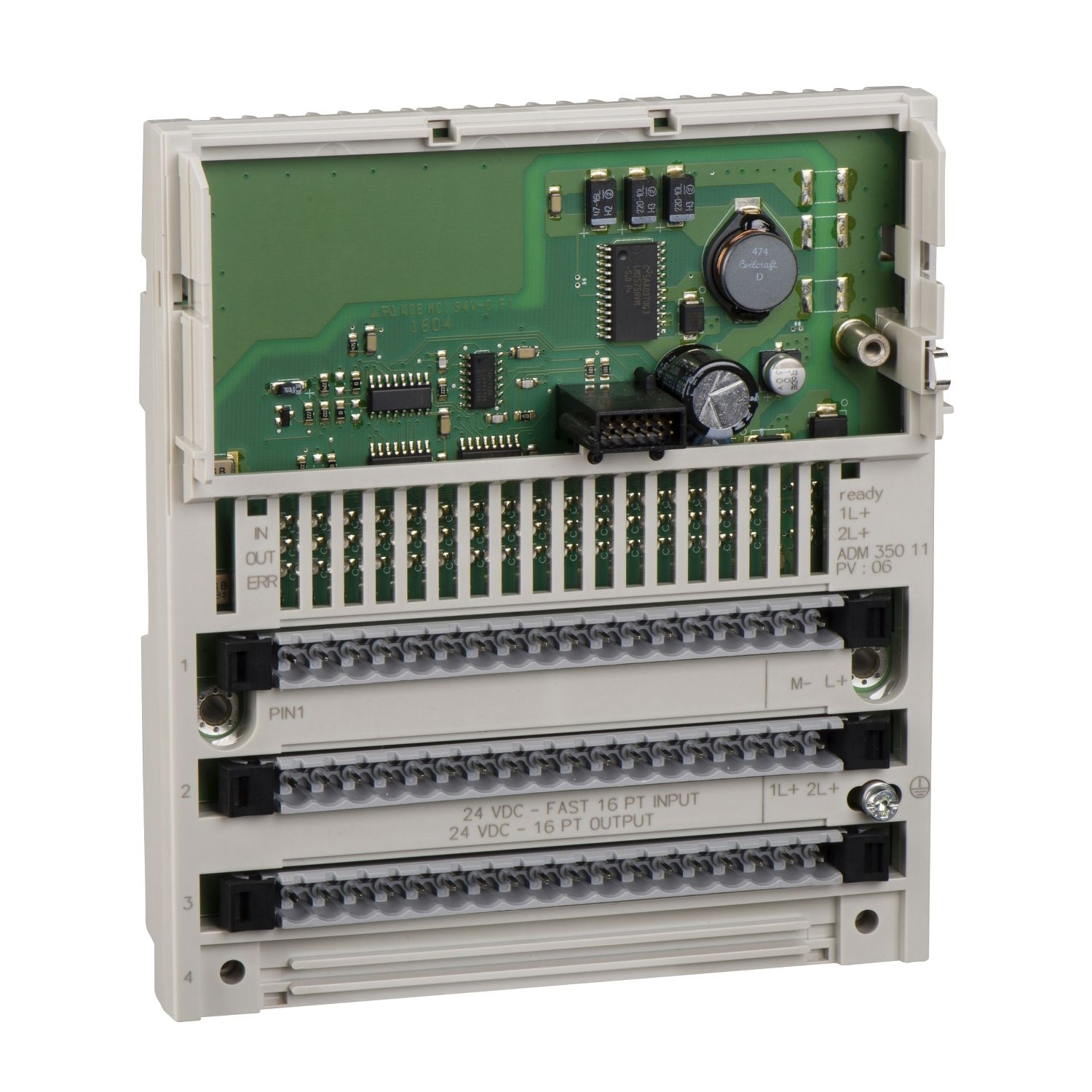

discrete I/O module Modicon Momentum - 16 I/O relay

Manufacturer: Schneider Electric

SKU: 170ADM85010

GTIN: 3595862070133

User guide

Environmental Disclosure

Instruction sheet

Circularity Profile

Declaration of conformity

Old price: $2,488.20 inc GST

Price: $3,290.64 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This I/O module is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. It is a discrete relay I/O base for DC. This relay supports one group of 16 inputs and one group of 16 outputs. It serves as solid state switch. The internal communications connector provides automatic communication to any adapter mounted on the base. It is certified FM Class 1 Division 2, CSA, and UL. It weighs 0.41kg. The I/O base provides the foundation for the rest of the Momentum control system. A Momentum I/O base is to be assembled with a communication adapter or a processor adapter. Momentum I/O base has mounting holes for a panel mount and a locking tab for a DIN rail mount. Momentum I/O bases offer simple plug-in terminal strips. Modicon Momentum is a flexible, modular family of fundamental components. Modicon Momentum products are specially designed for material handling, simple machine control, and building automation applications.

Products specifications

Attribute name	Attribute value
Main
Protective treatment	TC
Discrete input number	16 conforming to IEC 1131-2 Type 3
Discrete input logic	positive
Discrete output number	16
Discrete output voltage	48 V DC, 24 V DC, 12 V DC, <= 60 V DC
Product or component type	discrete relay I/O base DC
Discrete input voltage	48 V DC, 12 V DC, 24 V DC
Discrete output logic	positive
Range of product	Modicon Momentum automation platform
Group of channels	1 group of 16 inputs, 1 group of 16 outputs
Discrete output type	solid state switch
Complementary
[Us] rated supply voltage	48 V DC, 24 V DC, 12 V DC
Discrete output current	8 A 50 °C per group, 7 A 60 °C per module, 0.5 A per point
Depth	47.5 mm
Width	125 mm
Peak output current	5 A
Voltage state 1 guaranteed	> 7.5 V 12 V, > 30 V 48 V, > 11 V 24 V
Maximum leakage current	1 mA at 60 V (output circuit)
Voltage state 0 guaranteed	< 5 V 24 V, < 2.5 V 12 V, < 10 V 48 V
Response time	3.3 ms from state 1 to state 0 on input, 2.2 ms from state 0 to state 1 on input, < 0.1 ms from state 1 to state 0 on output, < 0.1 ms from state 0 to state 1 on output
Input voltage limits	10...60 V
Current state 1 guaranteed	2.9 mA 48 V, 2.7 mA 24 V, 2.3 mA 12 V
Current consumption	500 mA at 12 V DC, 125 mA at 48 V DC, 250 mA at 24 V DC
Isolation between channels and bus	707 V DC
Maximum voltage drop	<1 V 0.5 A at state 1 output circuit
Fault type	overload on output
Isolation between group of I/O channels	707 V DC
Height	141.5 mm
Power dissipation	6.0 + (0.144 x number of input points) + (0.25 x number of output points)
Environment
Operating altitude	<= 5000 m
Resistance to electrostatic discharge	8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2
Relative humidity	95-95 % without condensation
Ambient air temperature for storage	-40-85 °C
Resistance to electromagnetic fields	10 V/m 80...1000 MHz conforming to IEC 801-3
Ambient air temperature for operation	0-60 °C
Product certifications	CSA, UL, FM Class 1 Division 2
