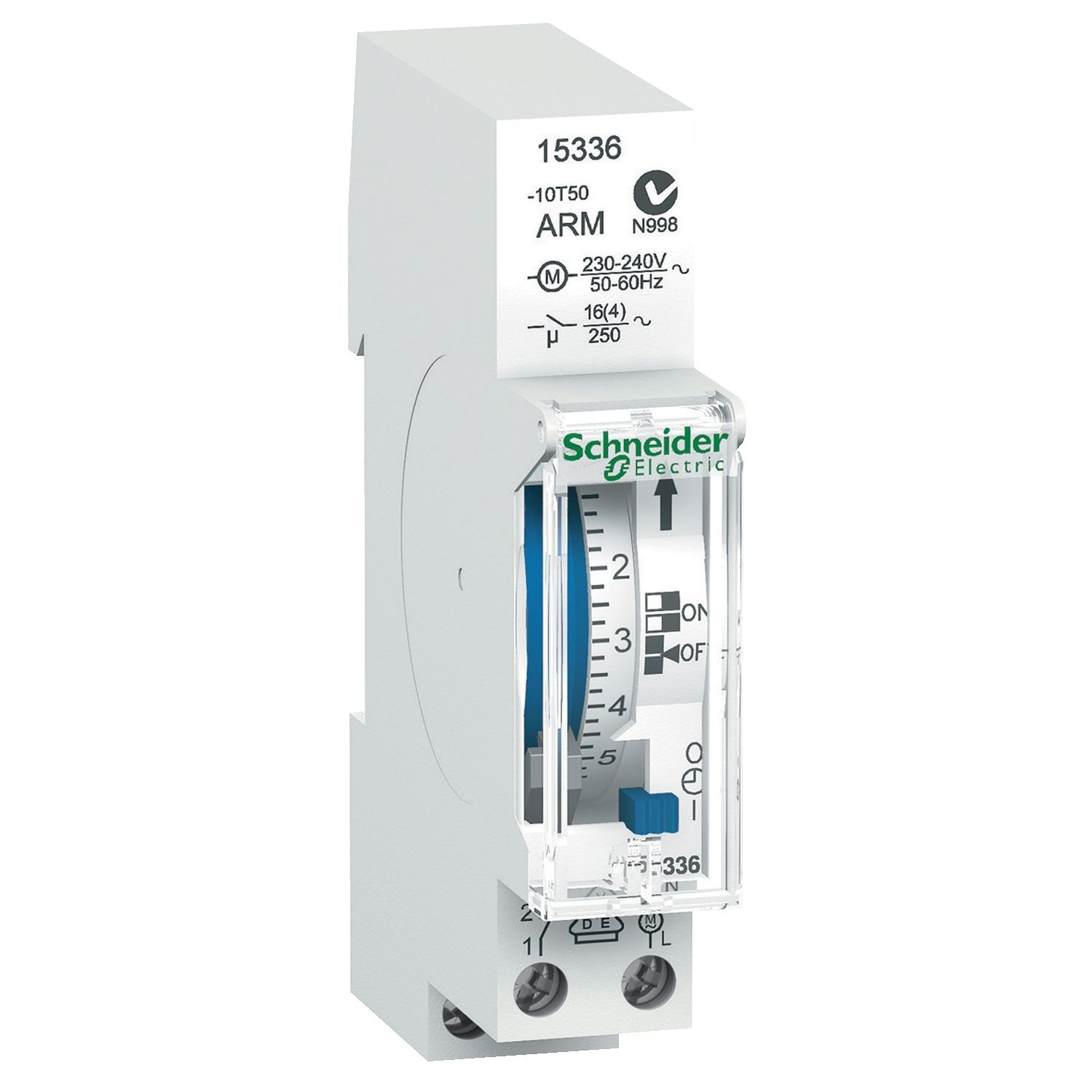

IH mechanical time switch Width of 18mm (2 modules of 9mm) Automatically switches On and Off loads according to the program entered by the user on daily level Swiching cycle is 24 h (daily) The minimum time between 2 switching operations is 15 minutes with the number of 48 On and 48 Off Savings on mains cut off with battery reserve: 100 hours Manual override is possible 1 channel output
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | IH |
| Number of channels | 1 |
| Function available | manual time changeover |
| Range | Acti9 |
| Range of product | Acti9 |
| Product name | Acti9 IH |
| Product or component type | mechanical time switch |
| Complementary | |
| Measurement accuracy | +/- 1 s/day 20-20 °C |
| Device application | building |
| Compatibility code | IH |
| Battery life | 10 year(s) |
| Maximum number of switchings | 48 on - 48 off |
| Backup time | 150 h time and program saving |
| Power consumption in W | 0.5 W |
| Load type | LED lamp > 2 W 300 W, LED lamp < 2 W 30 W, compact fluorescent lamp 150 W, fluocompact lamp 700 VA, 230 V AC incandescent lamp 1000 W, 230 V AC halogen lamp 1000 W, parallel-corrected fluorescent tube 2 x 100 W 18 µF, parallel-corrected fluorescent tube 7 x 40 W 7 µF, parallel-corrected fluorescent tube 5 x 58 W 4.7 µF |
| Maximum switching current | 4 A - 250 V AC pf = 0.6 , 16 A - 250 V AC pf = 1 |
| Height | 90 mm |
| Minimum interval duration | 15 min |
| Connections - terminals | screw terminals |
| Depth | 66 mm |
| Market segment | residential, small commercial |
| Width | 18 mm |
| Absence for holidays | no |
| Updated by | none |
| Function | none |
| Net weight | 0.101 kg |
| 9 mm pitches | 2 |
| Time changeover | manual |
| [Ue] rated operational voltage | 230...240 V AC at 50...60 Hz |
| Mounting support | DIN rail |
| Colour tint | white (RAL 9003) |
| Cycle duration | 24 h |
| Type of setting | manual time changeover |
| Environment | |
| IP degree of protection | terminals: IP20 B |
| Ambient air temperature for operation | -10-50 °C |
