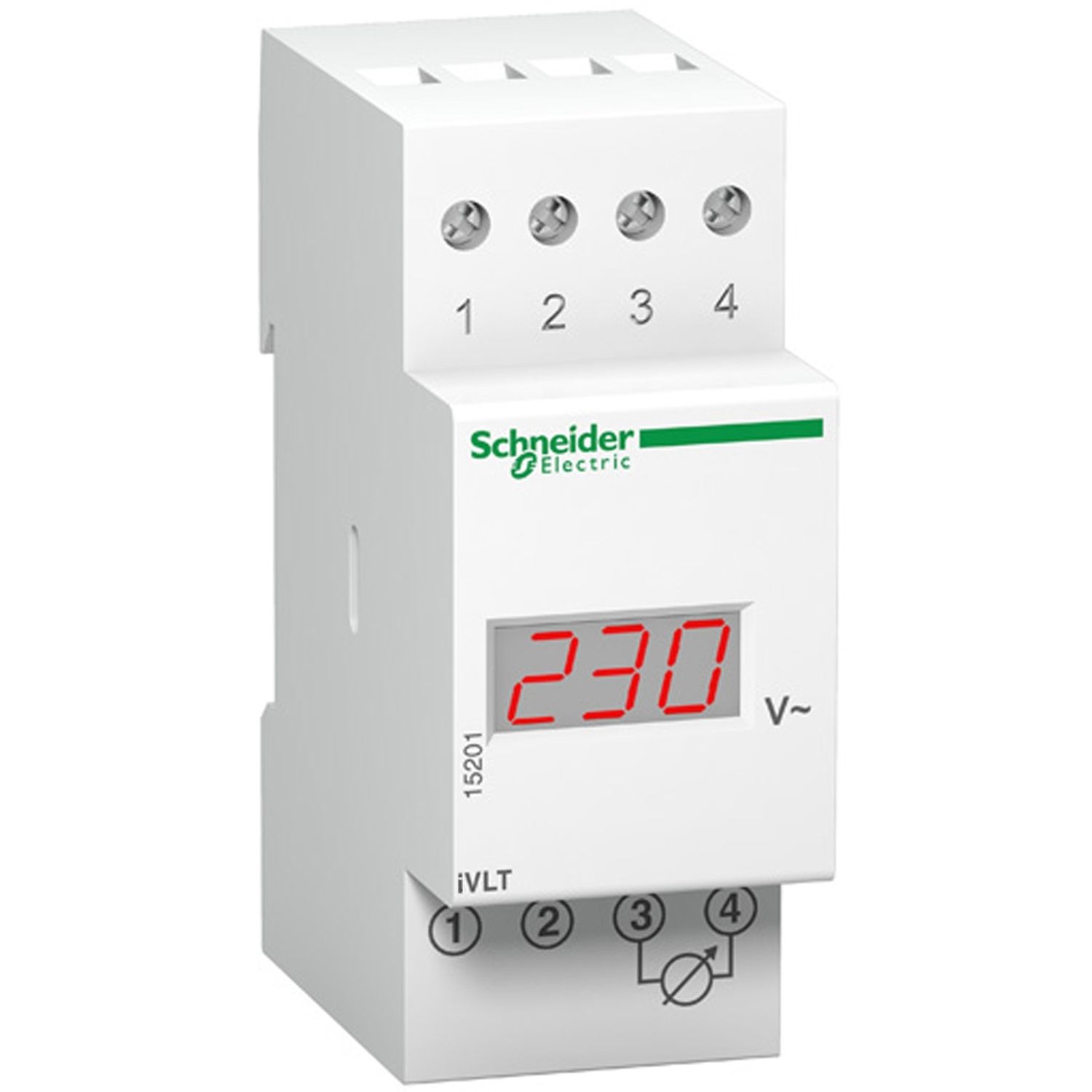

This instrument is aimed to be installed in a panel board, on a DIN rail. Voltmeters measure the potential (voltage) difference of an electric circuit in volts. The LED display is composed by 3 digits and indicate voltage from 0 to 600V AC. 0.5% of measurement accuracy at full scale. Complient with standards IEC/EN 61010-1. The dimensions of the product are 36mm in width or 4 9mm modules, 87mm in heigh and 65mm in depth.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | iVLT |
| Range | Acti9 |
| Product name | Acti9 iVLT |
| Product or component type | voltmeter |
| Network type | AC 50/60 Hz |
| Range compatibility | Prisma Prisma G door, Prisma Prisma P door |
| Mounting support | DIN rail |
| Range of product | Acti9 |
| Scale | 0-600 V |
| Complementary | |
| [Us] rated supply voltage | 230 AC at 50/60 Hz |
| Depth | 65 mm |
| Market segment | small commercial, residential |
| Width | 36 mm |
| Compatibility code | VLT |
| Power consumption in VA | 0.3 VA |
| Connections - terminals | tunnel type terminal 2 cable(s) 2.5-2.5 mm² |
| Type of measurement | voltage |
| 9 mm pitches | 4 |
| Height | 87 mm |
| Environment | |
| Standards | IEC 61010-1, IEC 60051-1, IEC 61000-4 |
| Ambient air temperature for operation | -20-50 °C |
