Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Discrete output number | 96 |

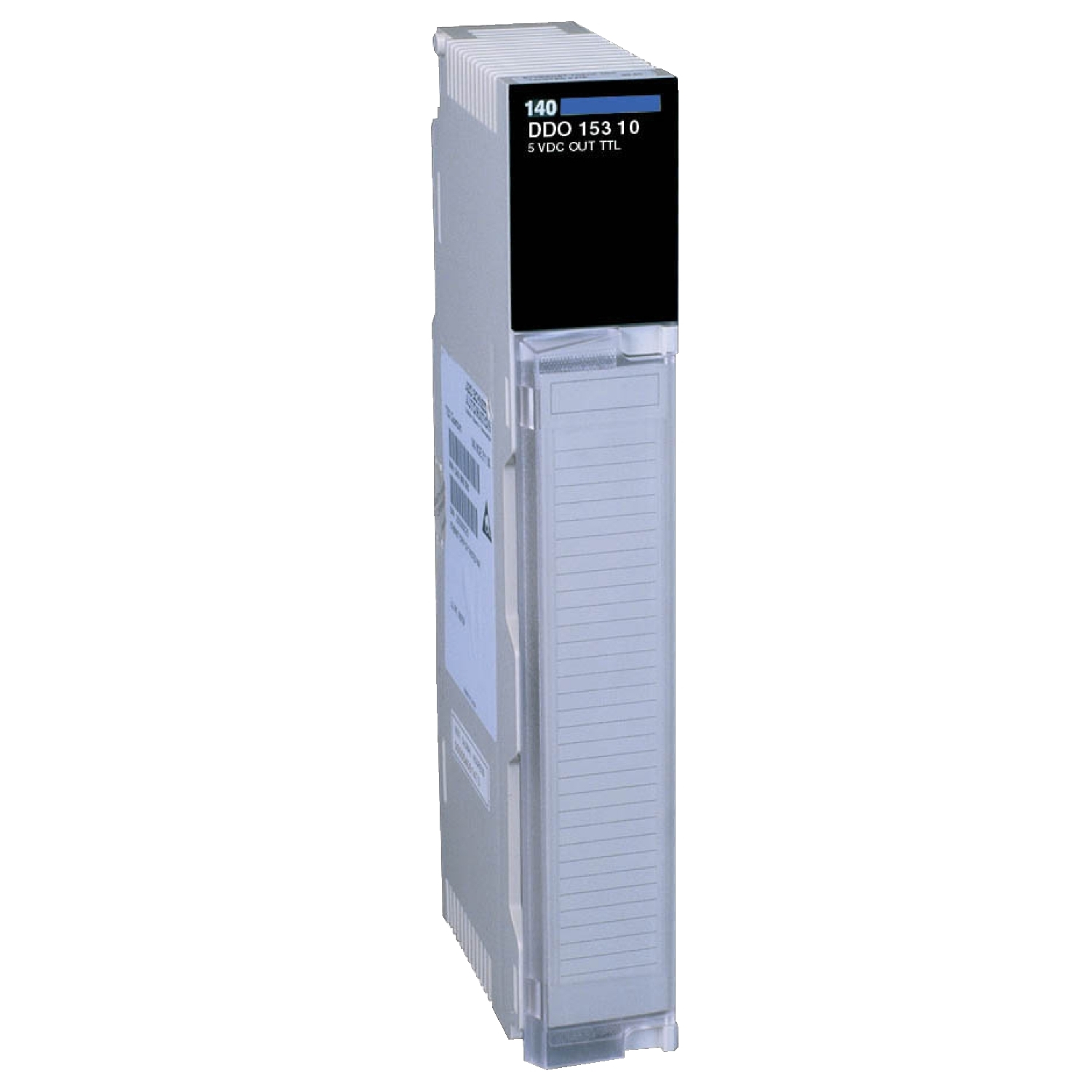

| Product or component type | dc discrete output module |
| Range of product | Modicon Quantum automation platform |
| Complementary | |
| Isolation between channels and bus | 500 Vrms DC for 1 minute |
| Module format | standard |
| Output overload protection | with |
| Local signalling | 96 LEDs (green) for input status, 1 LED (red) for external fault detected (F), 1 LED (green) for bus communication is present (Active) |
| Fault indication | fault reporting, loss of field power, fault point, fault sensing |
| Addressing requirement | 6 output words |
| Output voltage limits | 19.2...30 V |
| Short-circuit protection | with |
| Load inductance | inductance(H) = 0.5/((current(A))² x (switching frequency(Hz))) 0.5...4 Hz |
| Maximum leakage current | 1 mA 24 V |
| Net weight | 0.45 kg |
| Surge current | 2 A |
| Marking | CE |
| Discrete output voltage | 24 V DC |
| Maximum voltage drop | <0.4 V 0.5 A |
| Response time | <= 0.1 ms at state 1 to state 0, <= 0.1 ms at state 0 to state 1 |
| Bus current requirement | 250 mA |
| Discrete output logic | negative logic (sink) |
| Group of channels | 6 groups of 16 |
| Maximum load current | <= 3.2 A each group, <= 19.2 A per module, <= 0.5 A each point |
| Power dissipation | 7 W |
| Environment | |
| Operating altitude | <= 5000 m |
| Resistance to electrostatic discharge | 8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2 |
| Relative humidity | 95-95 % without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Standards | UL 508, CSA C22.2 No 142 |
| Resistance to electromagnetic fields | 10 V/m 80-2000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0-60 °C |
| Product certifications | FM Class 1 Division 2, GOST, RMRS, C-Tick |
