Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

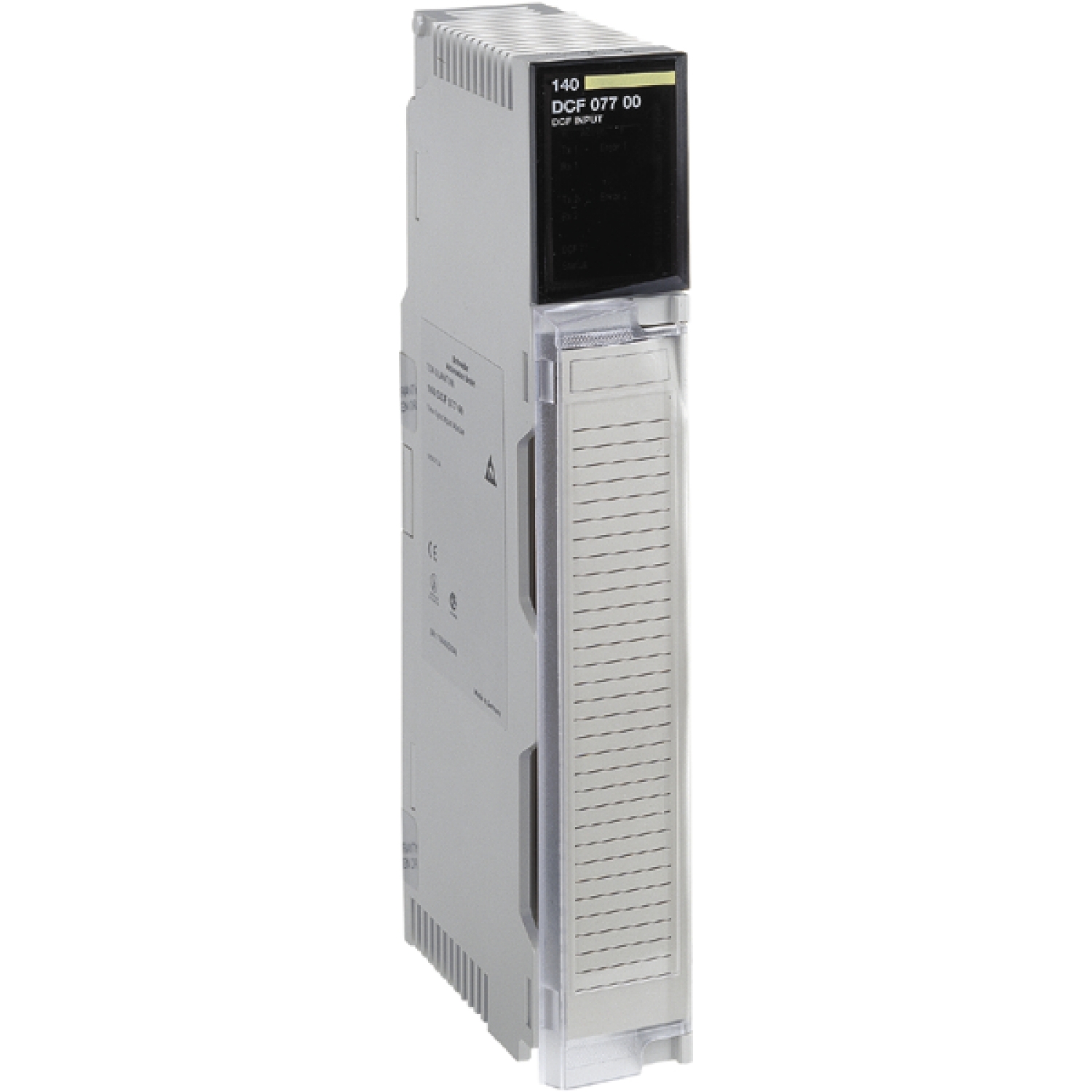

| Product or component type | PLC clock synchronization module |
| Range of product | Modicon Quantum automation platform |
| Processor name | 80C32-25 |
| Complementary | |
| Clock frequency | 221184 MHz |
| Net weight | 0.45 kg |
| Function of module | periodic time and date stamping of process values, time based tables, time and date stamping of events |
| Current consumption | 300 mA at 5 V DC internal via the system bus, 30 mA at 24 V DC |
| Local signalling | 1 LED (yellow) for synchronization with time receiver signal (STATUS), 1 LED (red) for no synchronization with time receiver signal since 60 minutes (ERROR 1), 1 LED (red) for no synchronization with time receiver signal (ERROR 2), 1 LED (green) for reception of date/time, flashes in time with the input signal (DCF77), 1 LED (green) for module running (R), 1 LED (red) for fault (F), 1 LED (green) for communication on the bus (Active) |
| Discrete input number | 1 |
| Electrical connection | 1 connector plug-in 6 screw terminals |
| Insulation | optocoupler |
| Discrete input type | DCF signal |
| Memory type | RAM 256 kB for data and the program, RAM 2 kB for the DPM, flash 128 kB for the program and the firmware |
| Input voltage | 24 V DC |
| Environment | |
| Operating altitude | <= 5000 m |
| Resistance to electrostatic discharge | 8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2 |
| Relative humidity | 95-95 % without condensation |
| Standards | HazLoc, UL 508 |
| Ambient air temperature for storage | -40-85 °C |
| Resistance to electromagnetic fields | 10 V/m 80-2000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0-60 °C |
| Product certifications | ABS, RINA, LR, DNV, GOST, GL, UL, CSA Class 1 Division 2, C-Tick, RRS |
