Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

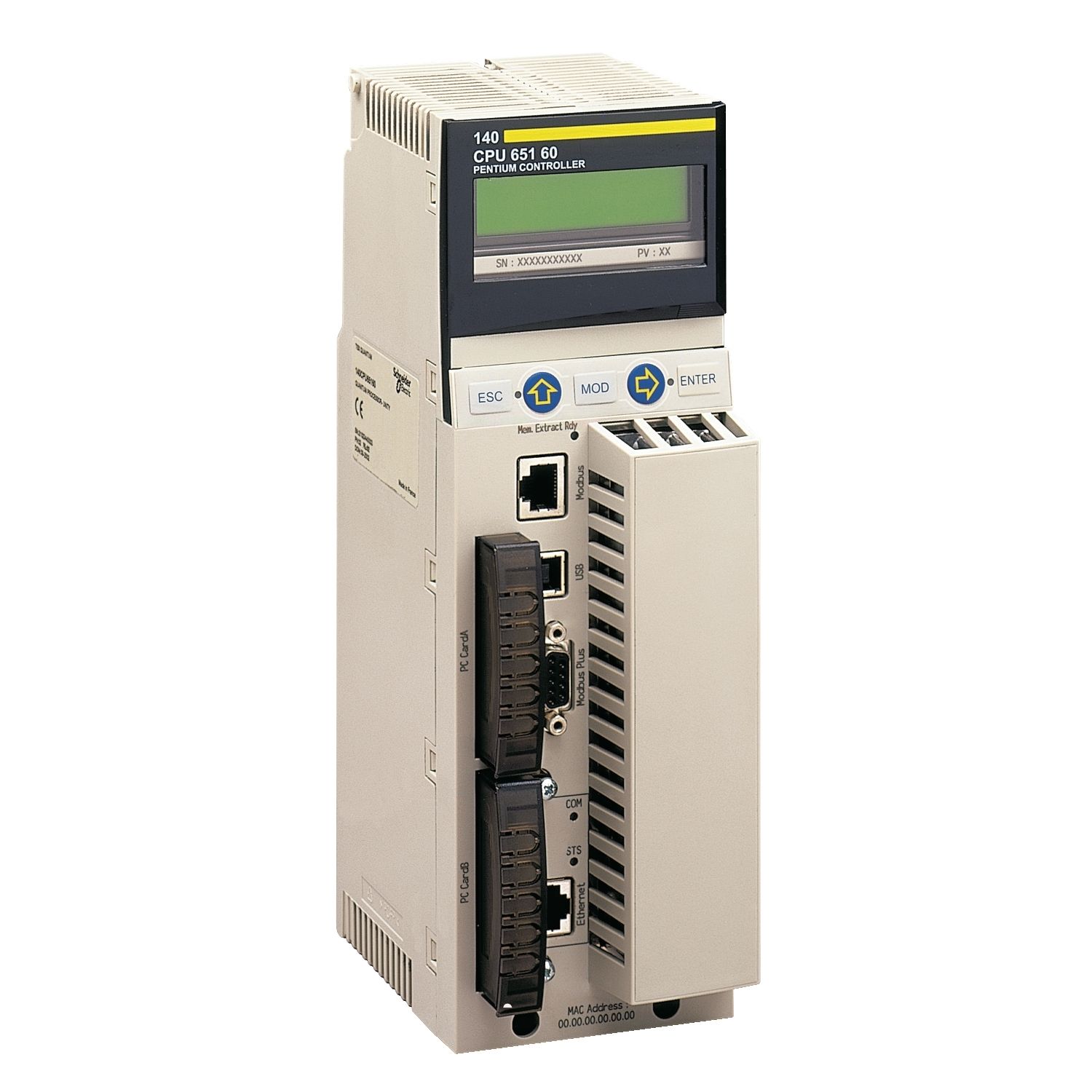

| Range of product | Modicon Quantum automation platform |
| Product or component type | Unity processor |
| Complementary | |
| Memory description | internal RAM 3072 kB, expandable 8 MB - file storage with PCMCIA card, expandable 7168 kB - program with PCMCIA card |
| Analogue I/O number | 1984 inputs,1984 outputs - remote, unlimited (31 drops of 28 slots max) - ethernet remote I/O, unlimited (26 slots max) - local, 500 inputs, 500 outputs - distributed - per network Modbus Plus |
| Number of instructions per ms | 10.07 Kinst/ms 65 % Boolean and 35 % numerical, 10.28 Kinst/ms 100 % Boolean |
| Application structure | 4 auxiliary tasks - , 32 timer interrupt tasks - , 128 interrupt tasks - , 128 I/O interrupt tasks - , 1 periodic fast task - , 1 cyclic/periodic master task - |
| Bus current requirement | 2760 mA |
| Application specific I/O | high-speed interrupt inputs, serial link, accurate time stamping, counter |
| Number of slots | 4, 10, 2, 6, 16 |
| Number of remote I/O station | 31 - 2 rack(s) per ethernet X80 remote I/O, 31 - 2 rack(s) per ethernet Quantum remote I/O, 31 - 2 rack(s) per S908 remote I/O |
| Number of optional modules | 6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max) |
| Clock frequency | 266 MHz |
| Communication service | Ethernet router |
| Checks | process control |
| Maximum number of connections | 1 Modbus (RS232/485 Modbus/ASCII), 6 Profibus DP - local, 6 Modbus Plus - local, 6 Ethernet TCP/IP - local, 4 AS-Interface - remote, 2 AS-Interface - distributed, 1 USB |
| Switch function | key switch memory port on/off |
| Local signalling | 1 LED (red) for Ethernet collision, 1 LED (green) for Ethernet activity (COM) |
| Integrated connection type | 1 USB with , 1 Modbus with , 1 Ethernet TCP/IP with , 1 Modbus Plus with |
| Discrete I/O number | 31744 inputs, 31744 outputs - S908 remote I/O, unlimited (31 drops of 28 slots max) - ethernet remote I/O, unlimited (26 slots max) - local, 8000 inputs, 8000 outputs - distributed - per network Modbus Plus |
| System overhead | 1 ms for master task, 0.2 ms for fast task |
| Number of racks | 2 - local rack(s) |
| Number of distributed I/O station | 63 station(s) - 1 rack(s) - 1 Modbus Plus network(s) |
| Electrical connection | 1 connector, connector type: RJ45 for connecting Modbus bus, 1 connector, connector type: RJ45 for connecting Ethernet network, 1 female connector, connector type: SUB-D 9 for connecting to the Modbus Plus network |
| Environment | |
| Standards | HazLoc |
| Product certifications | CE, GOST, UL, Misc (Marine), CSA |
