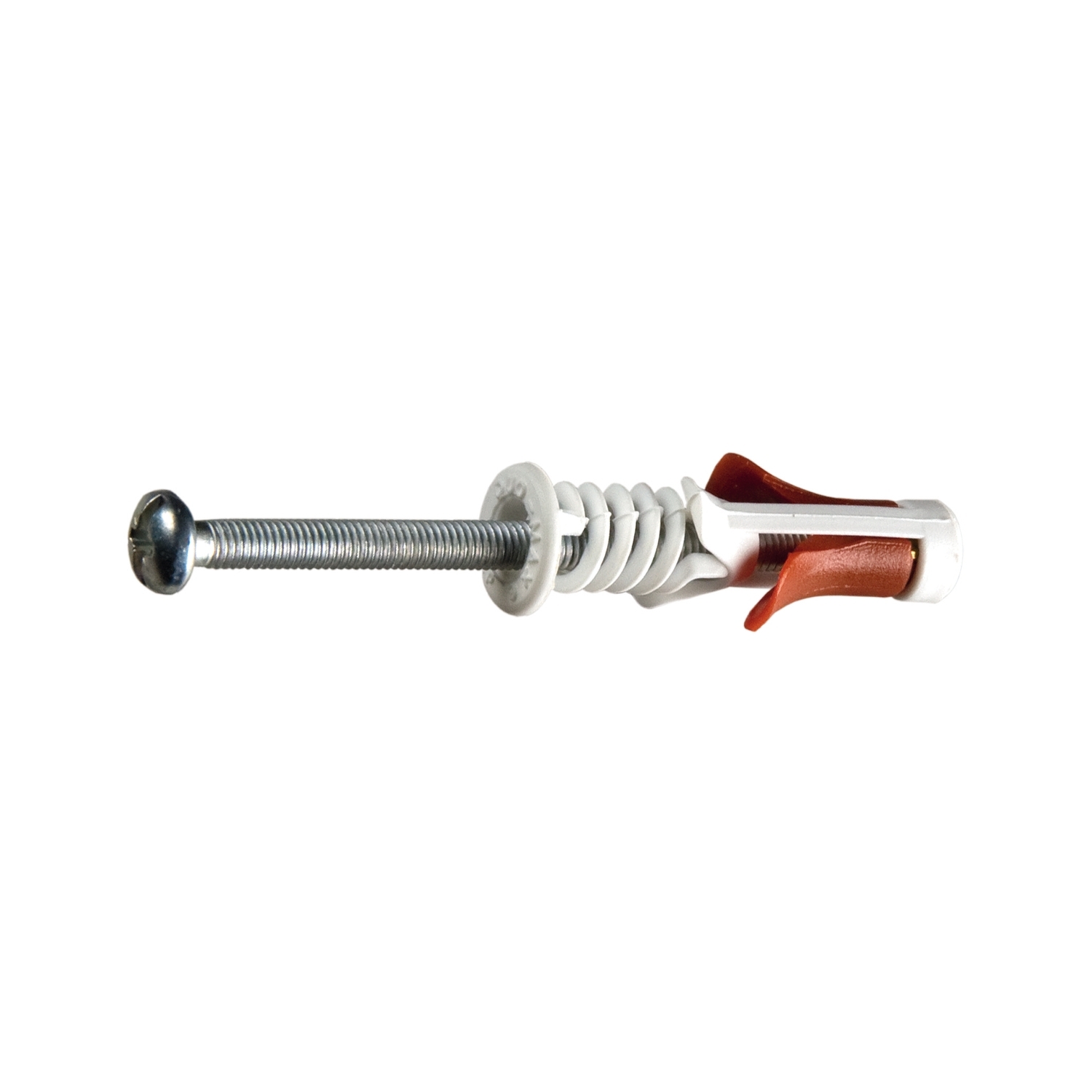

Cavity fixing 1240001 (set of 25 pieces) is supplied with a screw (M3, length: 50 mm) and does not require any special tool for installation This cavity fixing is to be used for installations in one or several layers of plasterboard and in other board materials Color: red/white Material: PA (polyamide), Screw of electroplated steel Installation: Drill a hole with a diameter of 6 mm and push in DUOMAX cavity fixing with the aid of the screw. Remove the screw and mount the fixture
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Screw length | 50 mm |
| Device short name | TSP |
| Mounting support | board material - thickness: 3-26 mm, wall mounted |
| Colour tint | red/white |
| Provided equipment | screw |
| Device application | 3-26 mm board material |
| Drilling diameter | 6 mm |
| Thread type | M3 |
| Product or component type | cavity fixing |
| Range of product | Thorsman |
| Screw diameter | 3 mm |
| Complementary | |
| Quantity per set | set of 25 |
| Net weight | 0.0028 kg |
| Environment | |
| Environmental characteristic | corrosion resistance |
| Length | 52 mm |
| Thickness | 0-7 mm fixture 2 x 13 mm board, 0-20 mm fixture 13 mm board |
| Material | spring: PA (polyamide), collar: PA (polyamide), screw: steel electroplated |
| Practical load capacity | pull-out load: 90 N for 2 x 13 mm board 6 ), shear: 240 N for 2 x 13 mm board 4.5 ), pull-out load: 70 N for 13 mm board 6 ), shear: 180 N for 13 mm board 4.5 ) |
| Diameter | 11 mm |
| Ambient air temperature for operation | -40-80 °C |
