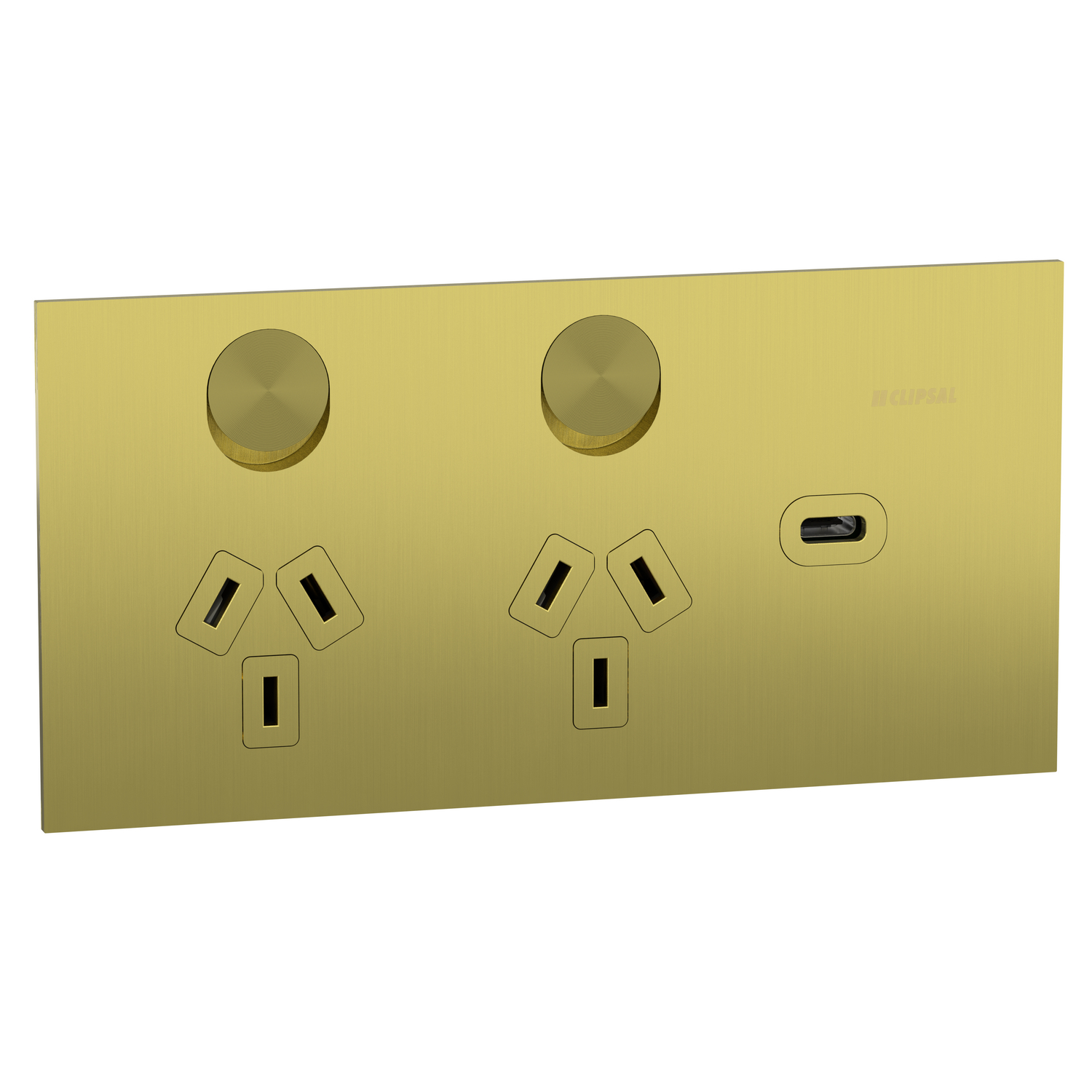

Double switched socket + USB charger, Clipsal Solis T Series, horizontal, USB C type, 10A, brushed brass
Manufacturer: Clipsal
SKU: 1025USBC-BB
GTIN: 3606487834755
The Clipsal Solis double switched socket + USB charger is designed to meet the demands of residential, commercial, and hotel applications. The Clipsal Solis double switched socket + USB charger is designed to meet the demands of residential, commercial, and hotel applications. The USB C charger can be plugged directly into the wall, eliminating the need for an external charger. The rated current is 10A and the rated operational voltage is 230/240VAC. The device comes with a screw terminal that offers a more secure connection for larger wires, reducing the risk of loose wires caused by external factors. This device allows for flush mounting. Screws are available for installation. The socket has a shutter that prevents the insertion of objects other than plugs for safety purposes. It is intended to be installed horizontally only. The dimensions are (W) 148mm x (H) 74mm x (D) 68.9mm, and the embedding depth is 65mm. Discover the perfect fit with a 120mm fixing center and 3.9mm thickness for seamless integration into your projects. The color of the product is brushed brass. Its operating temperature is from 0°C to 45°C. Choose from modern high-end finishes such as ceramic white, living brass, and recycled aluminum in platinum or ebony for contemporary home spaces with the Clipsal Solis T Series range. Create aesthetically pleasing electrical designs that complement your style.
Availability: Out of stock
Old price: $206.58 inc GST
$297.48 inc GST
Supported cards
Supported cards

Products specifications

Attribute name Attribute value
Main
Standards AS/NZS 3112
Product or component type switched socket with USB charger
Main colour tint brushed brass
Product certifications RCM
Device presentation complete product
Complementary
Number of power socket outlets 2 x 2P + E, Australian/New Zealand
Colour tint brushed brass
Installation direction horizontal
Width 148 mm
Depth 68.9 mm
Screwdriver shape Philips No 2, square drive no 1 (SQ1)
Surface finish aluminium
Fixing center 120 mm
Range Clipsal Solis T Series
Control type rocker
Cut-out dimensions 130 x 50 mm
Device mounting flush, wall mounted 65 mm
Socket number 2
Material aluminium
Number of rocker 2
Height 74 mm
Fixing mode by screws
Rated current 10 A 230/240 V, AC, 50 Hz
Surface treatment anodised
Thickness 3.9 mm
Wire stripping length 16 mm
Connector type USB type C
Cover type with shutter
Sale per indivisible quantity 1
Connections - terminals 4 x 2.5 mm² screw terminals, 3 x 4 mm² screw terminals
Environment
Ambient air temperature for operation 0-45 °C
Relative humidity 10-95 %
