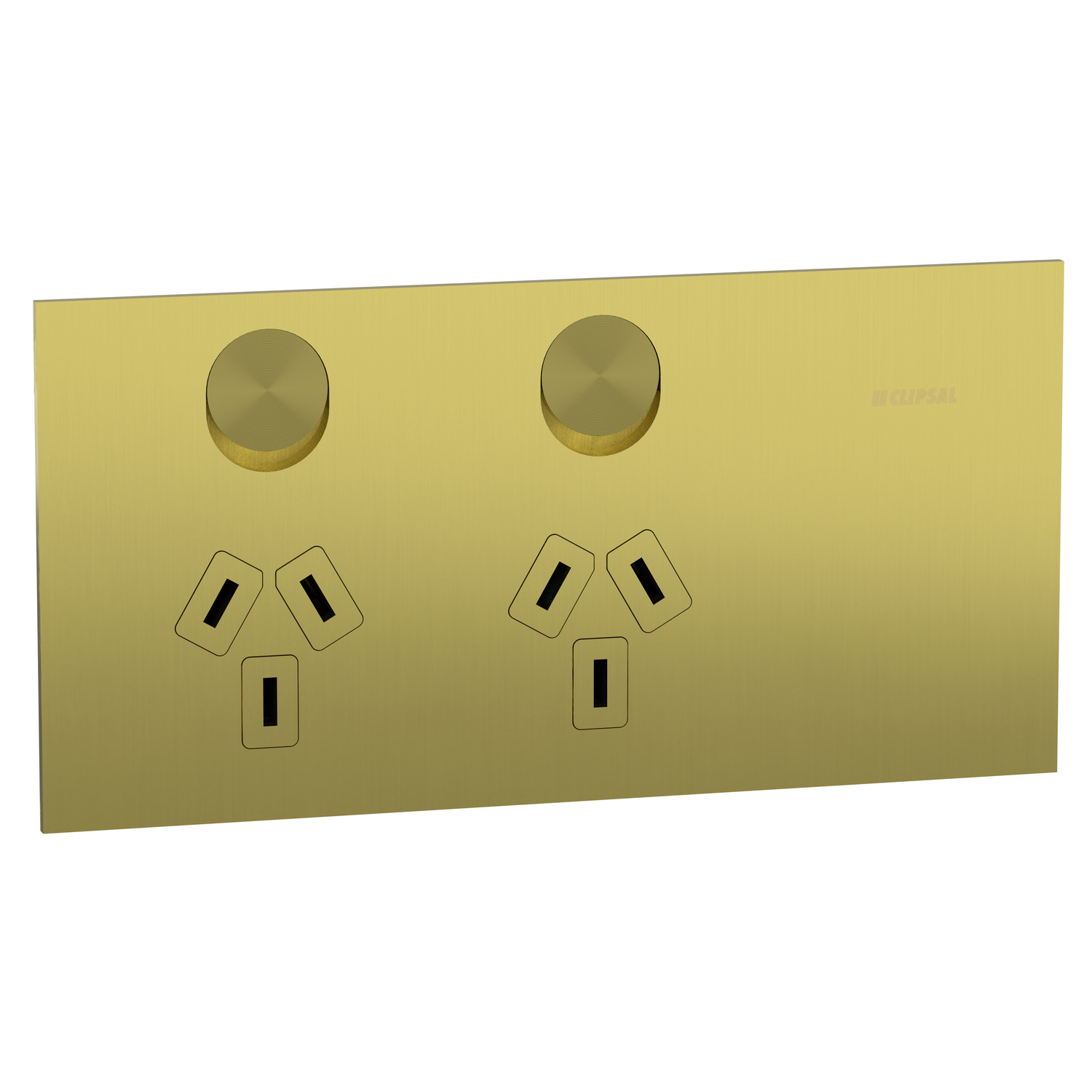

Double switched socket outlet, Clipsal Solis T Series, horizontal, 10A, brushed brass
Manufacturer: Clipsal
SKU: 1025-BB
GTIN: 3606487834731
The Clipsal Solis T Series double-switched socket is designed for use in residential, commercial, and hotel applications. The Clipsal Solis T Series double-switched socket is designed for use in residential, commercial, and hotel applications. The rated current is 10A and the rated operational voltage is 230/240VAC. The device comes with a screw terminal that offers a more secure connection for larger wires, reducing the risk of loose wires caused by external factors. This device allows for flush mounting. Screws are available for installation. The socket has a shutter that prevents the insertion of objects other than plugs for safety purposes. It is intended to be installed horizontally only. The dimensions are (W) 148mm x (H) 74mm x (D) 27.4mm, and the embedding depth is 23.5mm. Discover the perfect fit with a 84mm fixing center and 5mm thickness for seamless integration into your projects. The color of the product is brushed brass. Its operating temperature is from 0°C to 45°C. Choose from modern high-end finishes such as ceramic white, living brass, and recycled aluminum in platinum or ebony for contemporary home spaces with the Clipsal Solis T Series range. Create aesthetically pleasing electrical designs that complement your style.
Availability: Out of stock
Old price: $123.20 inc GST
$177.41 inc GST
Supported cards
Supported cards

Products specifications

Attribute name Attribute value
Main
Product or component type switched socket
Colour tint brushed brass
Range Clipsal Solis T Series
Main colour tint brushed brass
Product brand Clipsal
Socket additional information shuttered
Device presentation complete product
Complementary
Network frequency 50 Hz
Fixing mode screw
Number of power socket outlets 2 x 2P + E, Australian/New Zealand, 2
Material aluminium
[In] rated current 10 A
Mounting position horizontal
Width 148 mm
Depth 27.4 mm
[Ue] rated operational voltage 230/240 V AC
Screwdriver shape Philips No 2, square drive no 1 (SQ1)
Surface finish metallic
Socket-outlet type double socket-outlet
Fixing center 84 mm
Control type rocker
Cut-out dimensions 93 x 50 mm
Embedding depth 23.5 mm
Device mounting flush
Number of rocker 2
Height 74 mm
Surface treatment anodised
Thickness 3.9 mm
Wire stripping length 16 mm
Connections - terminals 4 x 2.5 mm² screw terminals, 3 x 4 mm² screw terminals
Environment
Ambient air temperature for operation 0-45 °C
Relative humidity 10-95 %
Product certifications RCM
Standards AS/NZS 3112
